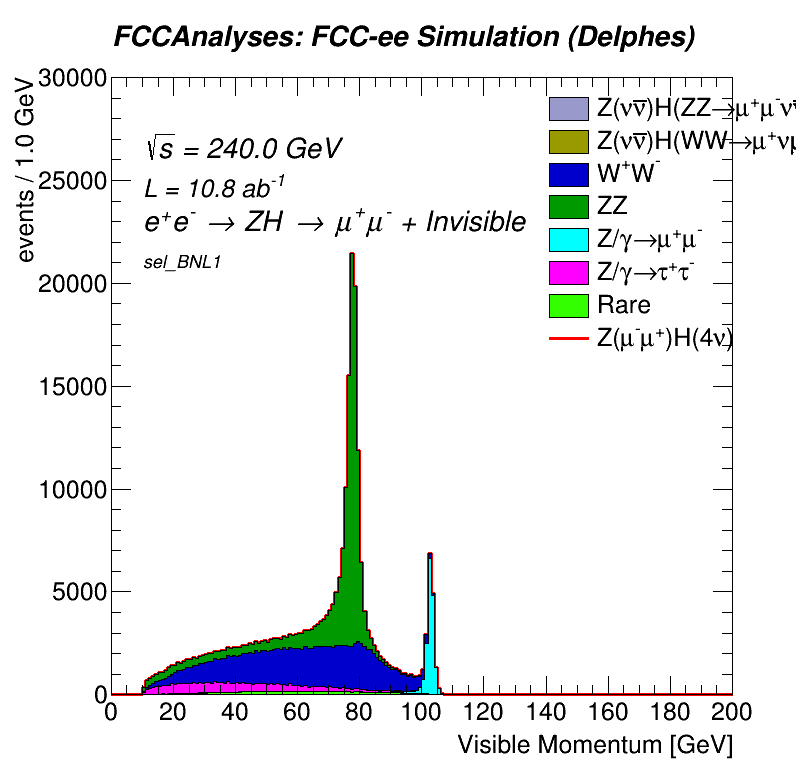

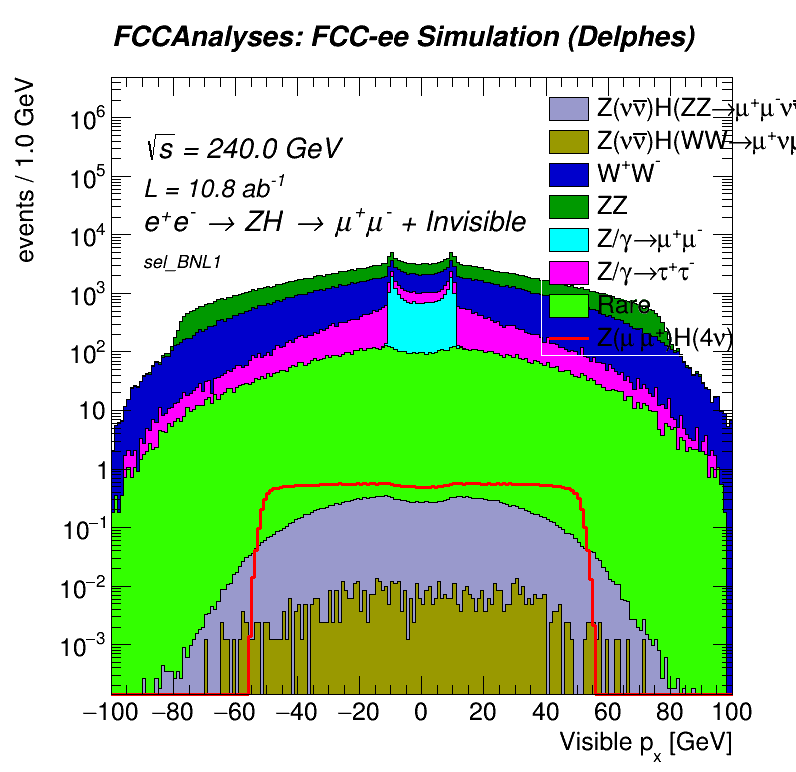

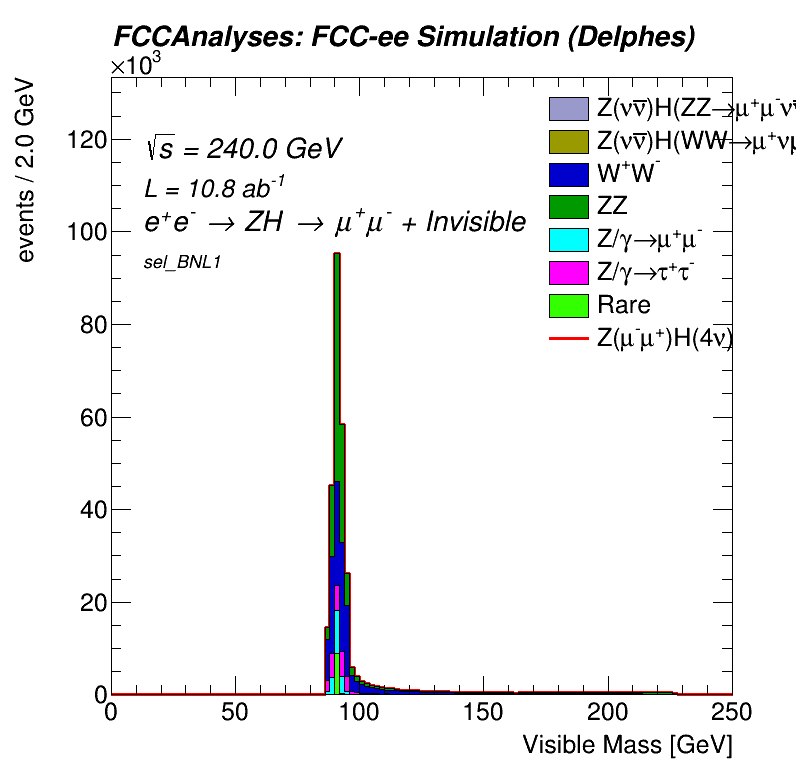

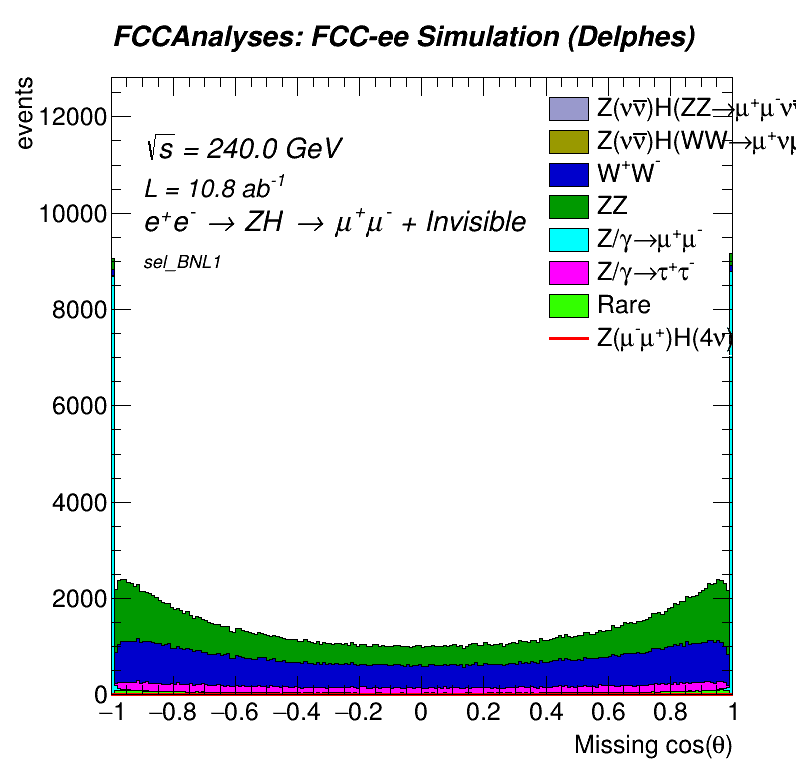

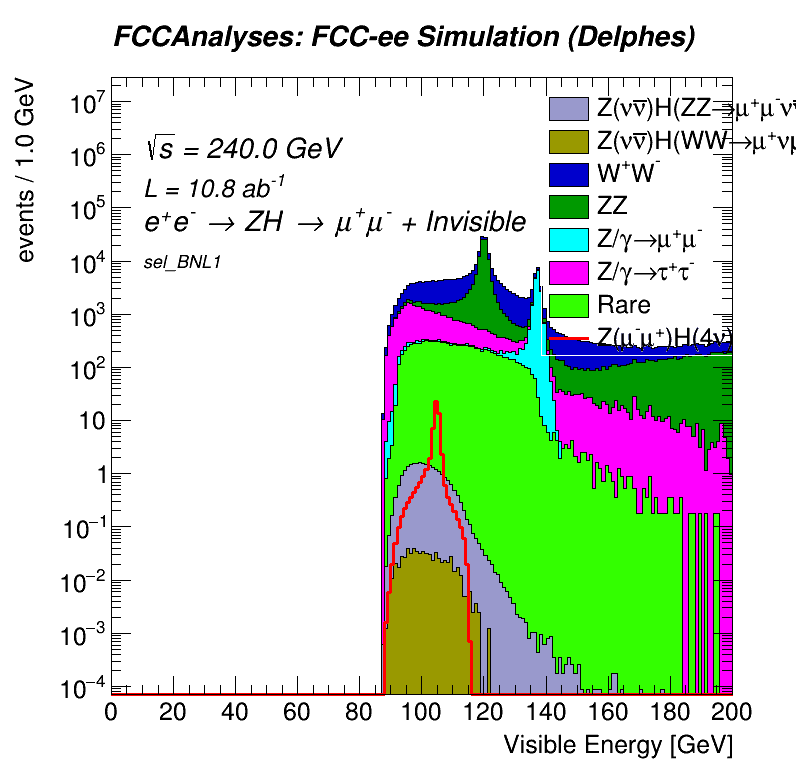

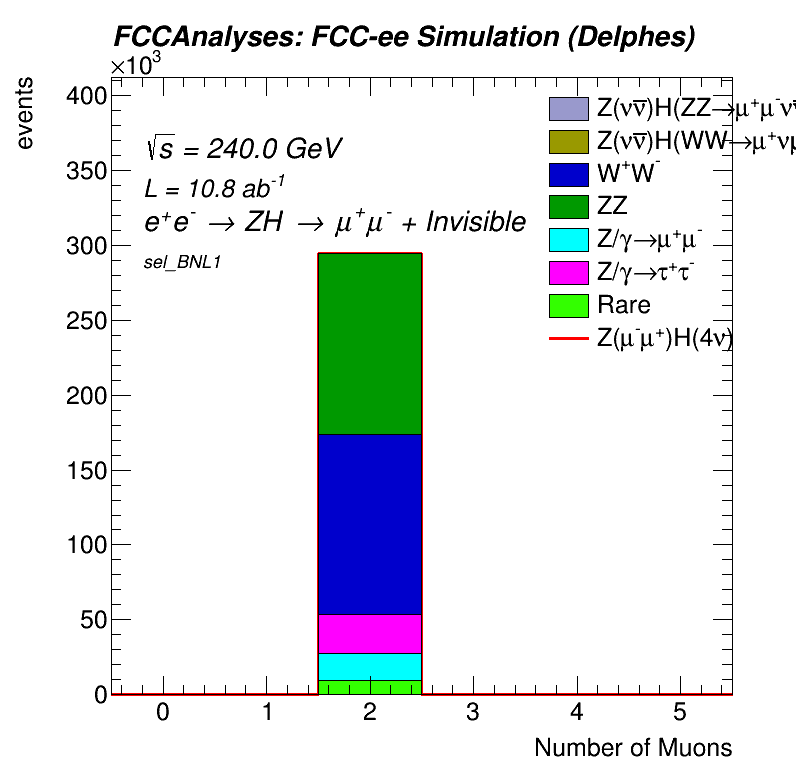

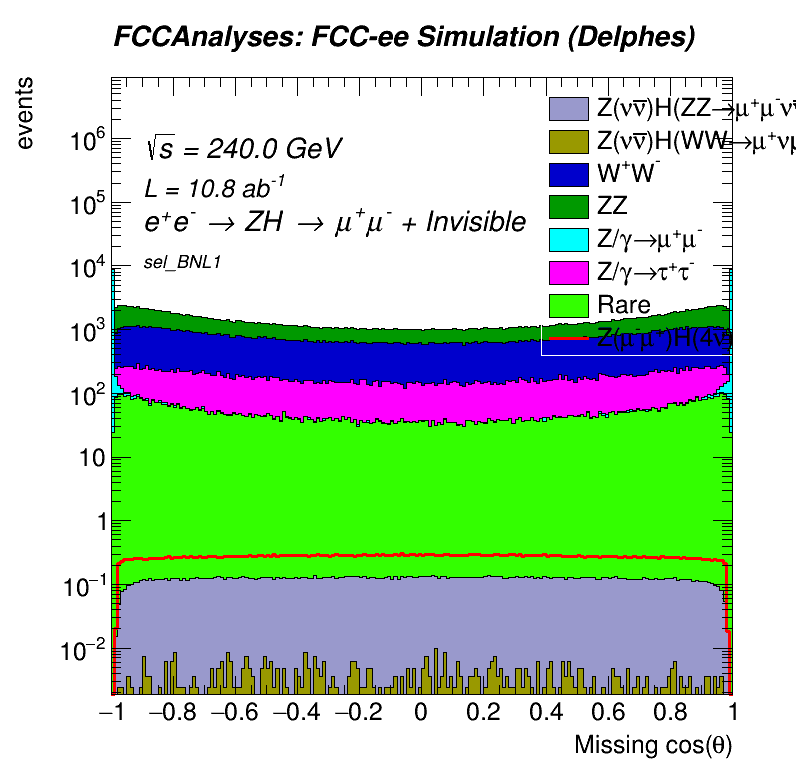

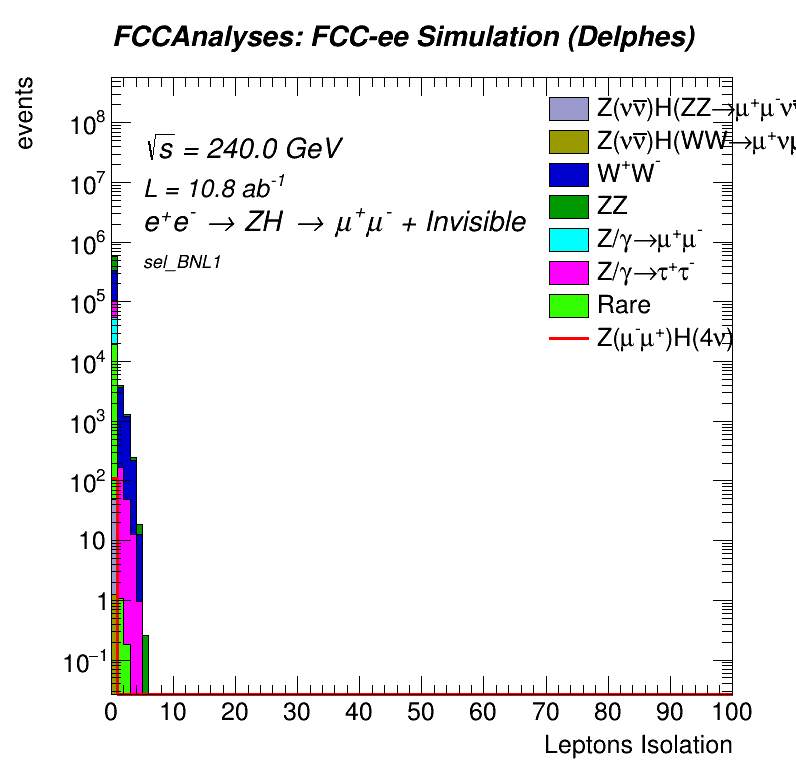

This page saves the plots for FCC Higgs to Invisible study. The selections are:
"sel0":"return true",
"sel1":"muons_no==2",
"sel2":"muons_no==2 && electrons_no==0",
"sel3":"muons_no==2 && electrons_no==0 && Z_m[0] > 86 && Z_m[0] < 96",
"sel4":"muons_no==2 && electrons_no==0 && Z_m[0] > 86 && Z_m[0] < 96 && missing_mass[0] > 100 && missing_mass[0] < 140",
"sel5":"muons_no==2 && electrons_no==0 && Z_m[0] > 86 && Z_m[0] < 96 && missing_mass[0] > 100 && missing_mass[0] < 140 && visible_mass[0] > 86 && visible_mass[0] < 96",

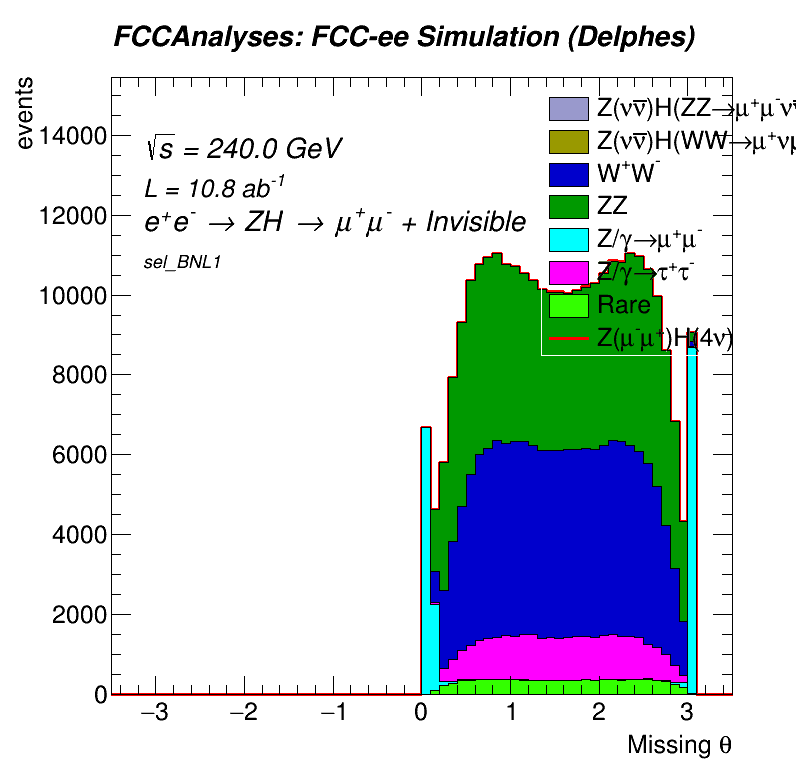

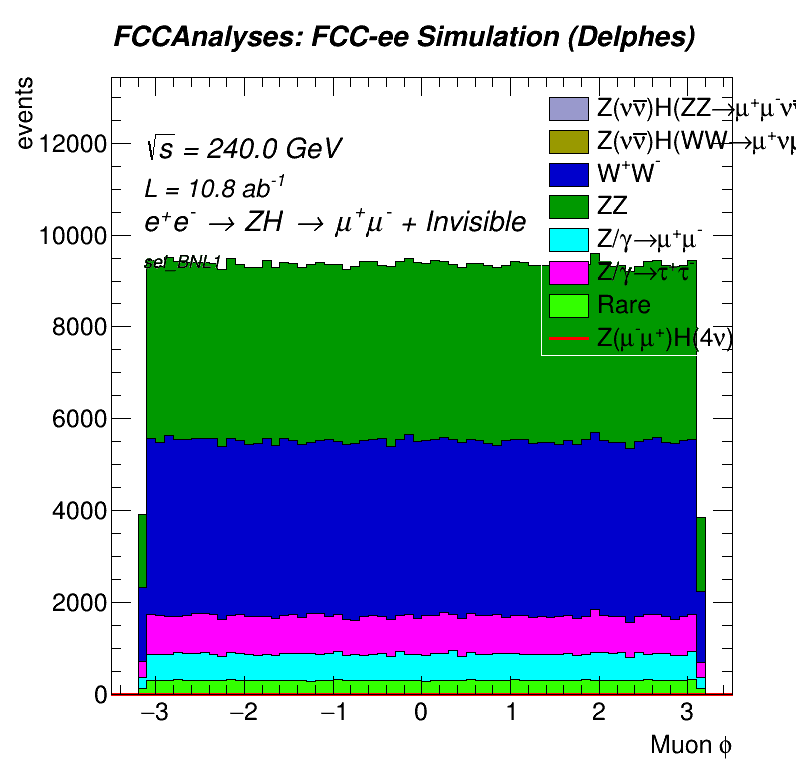

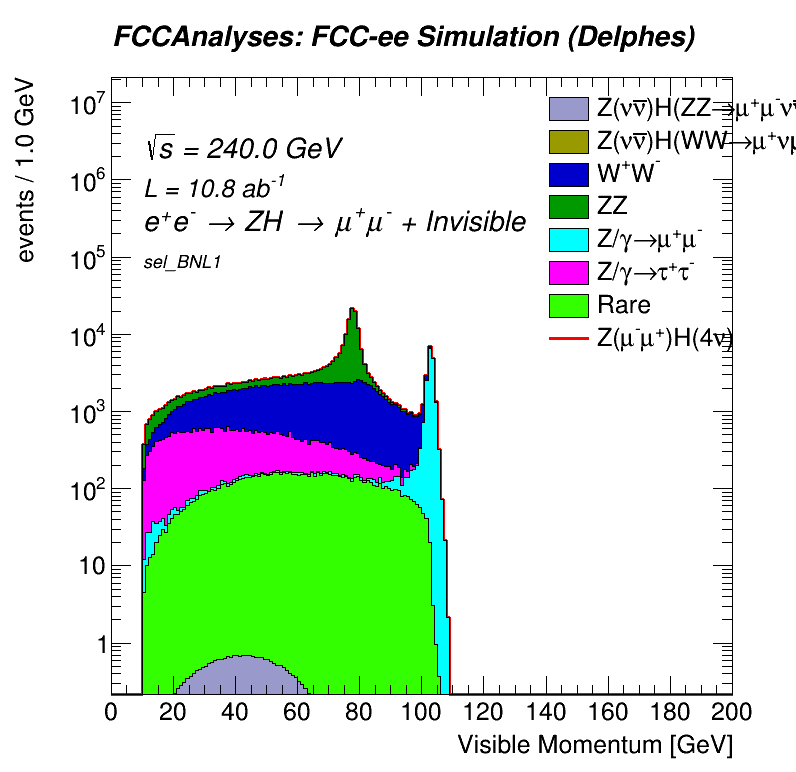

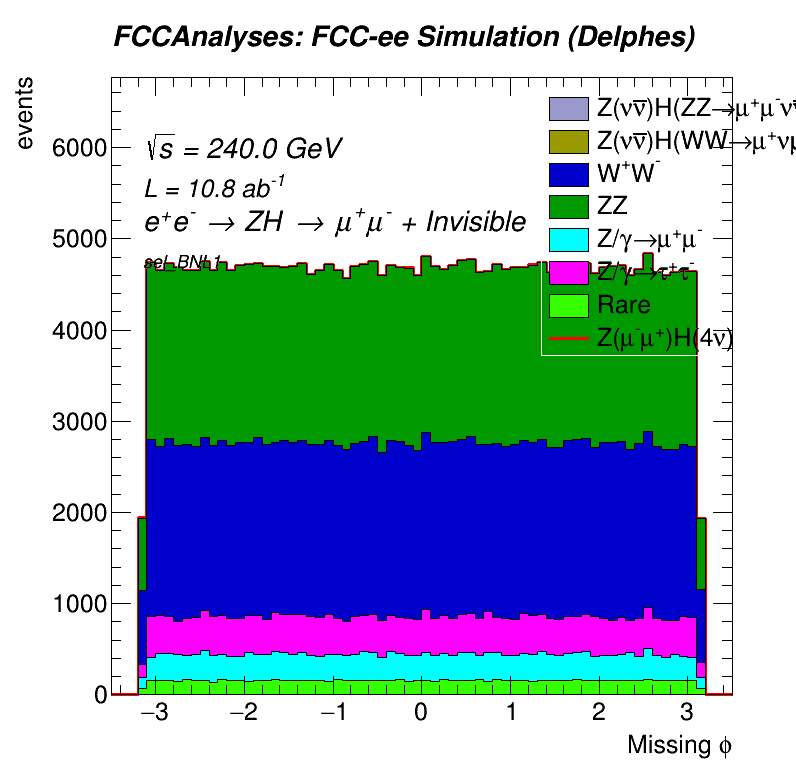

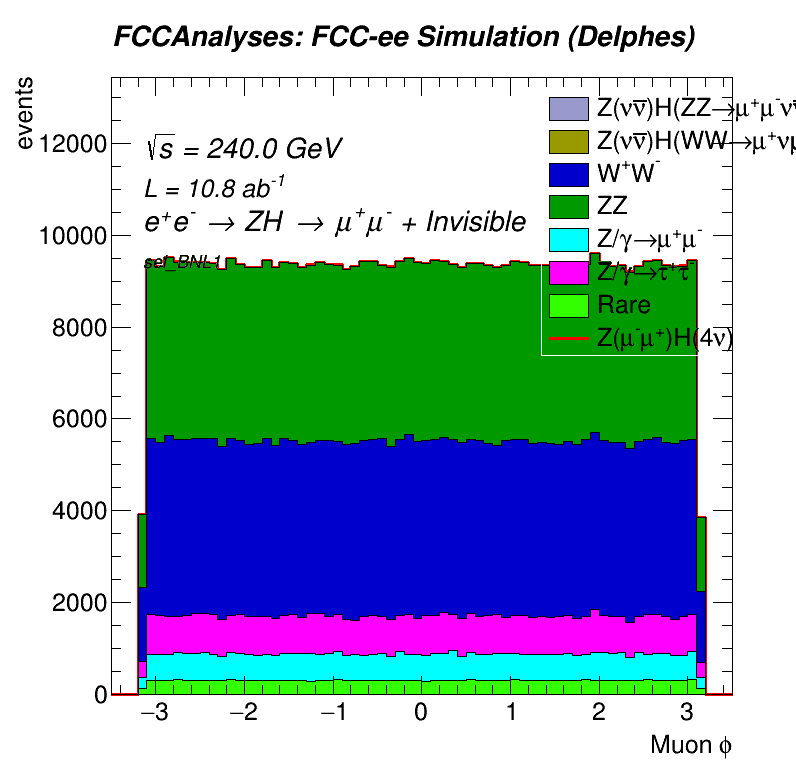

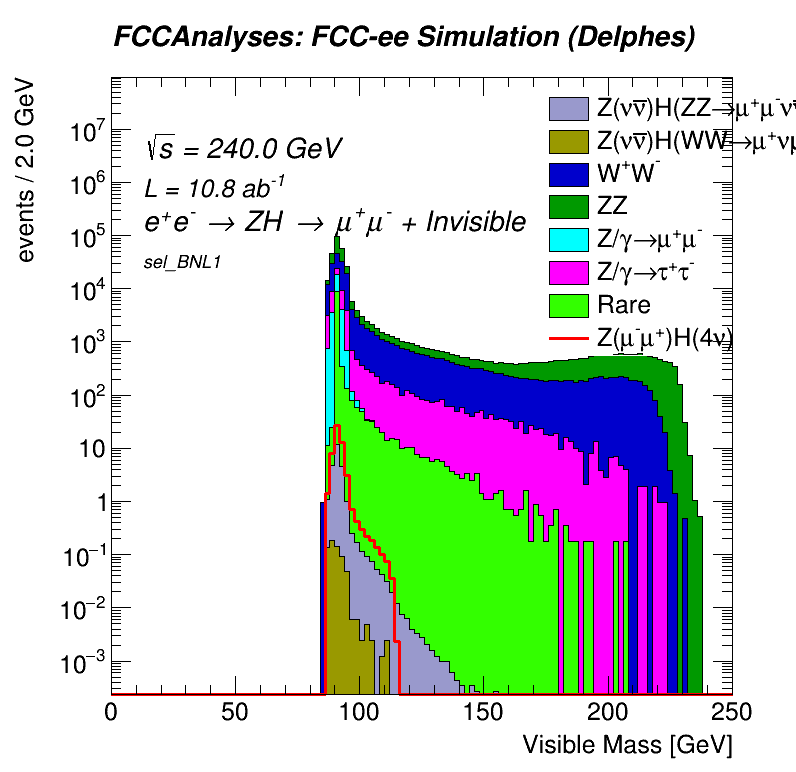

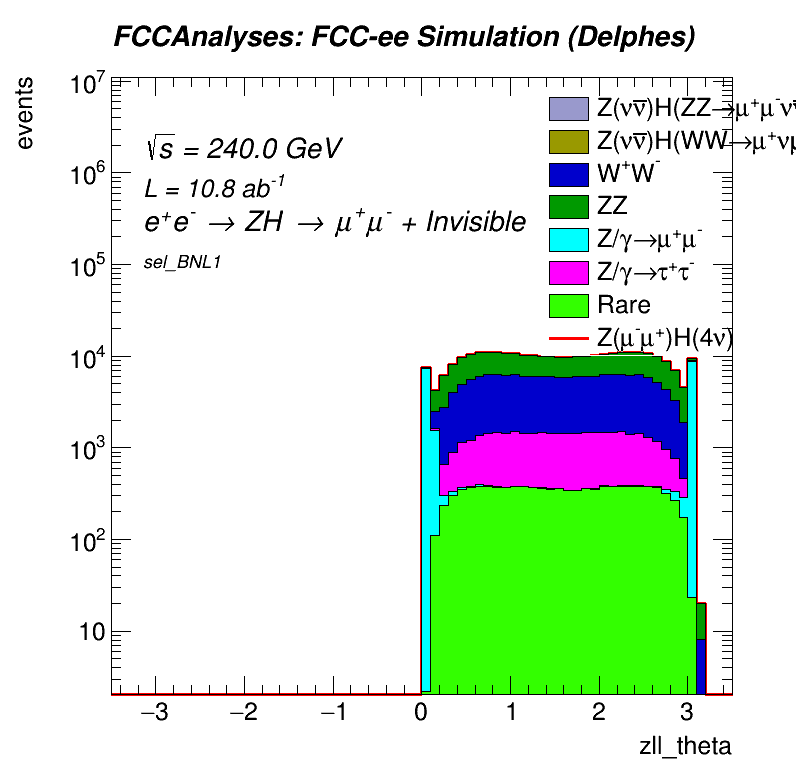

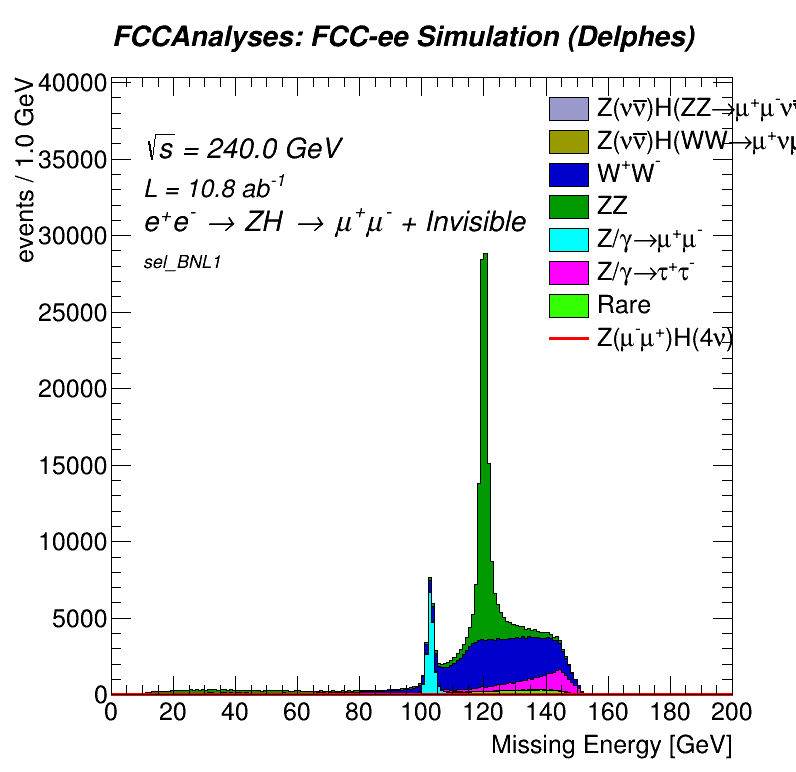

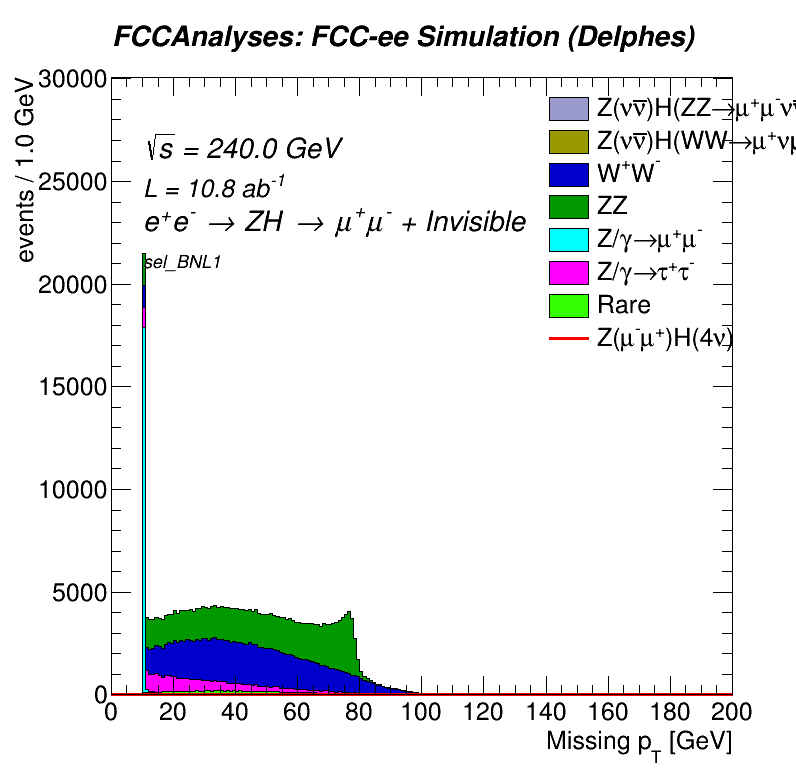

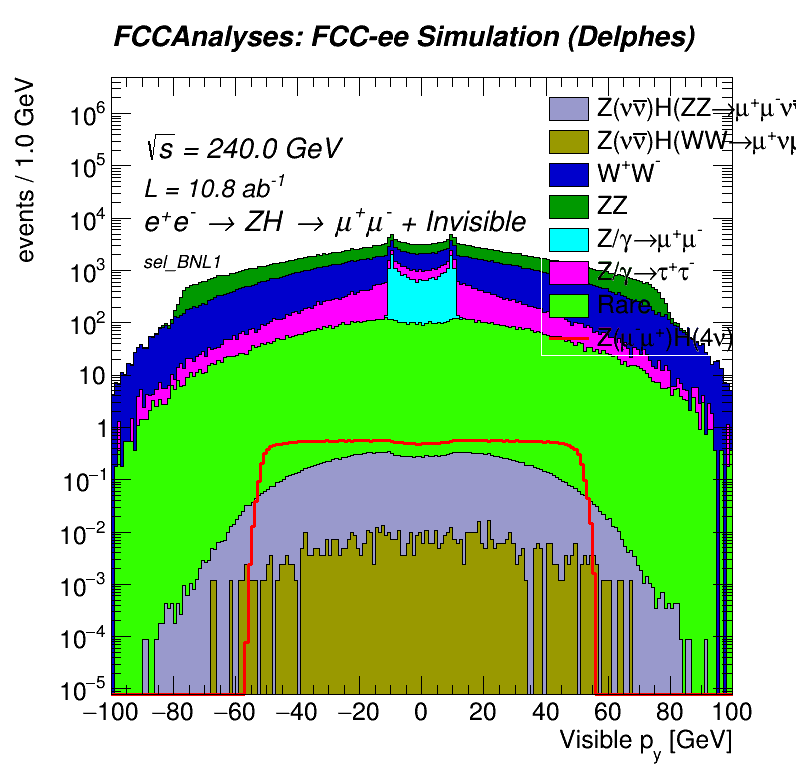

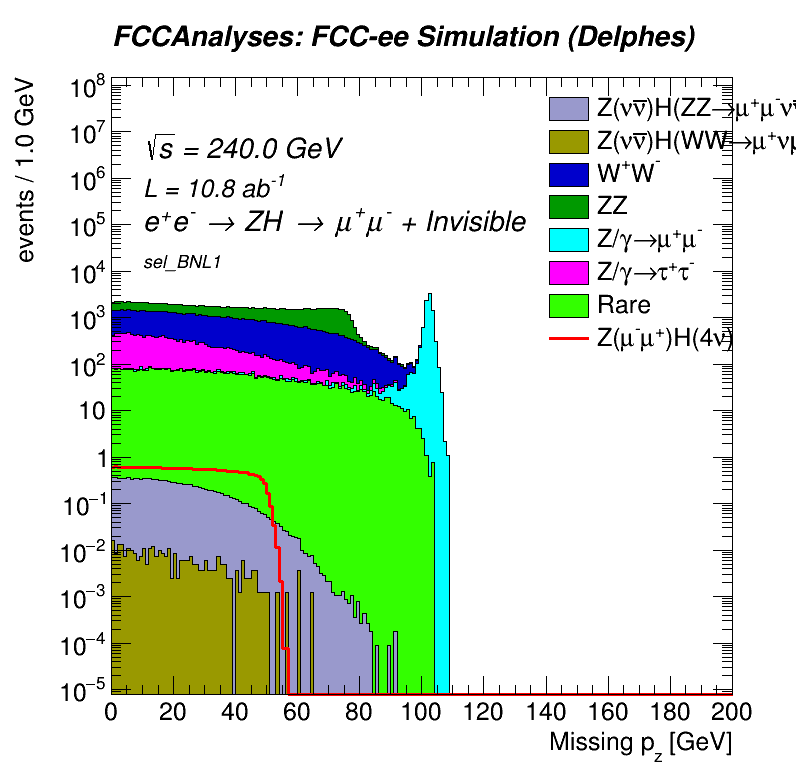

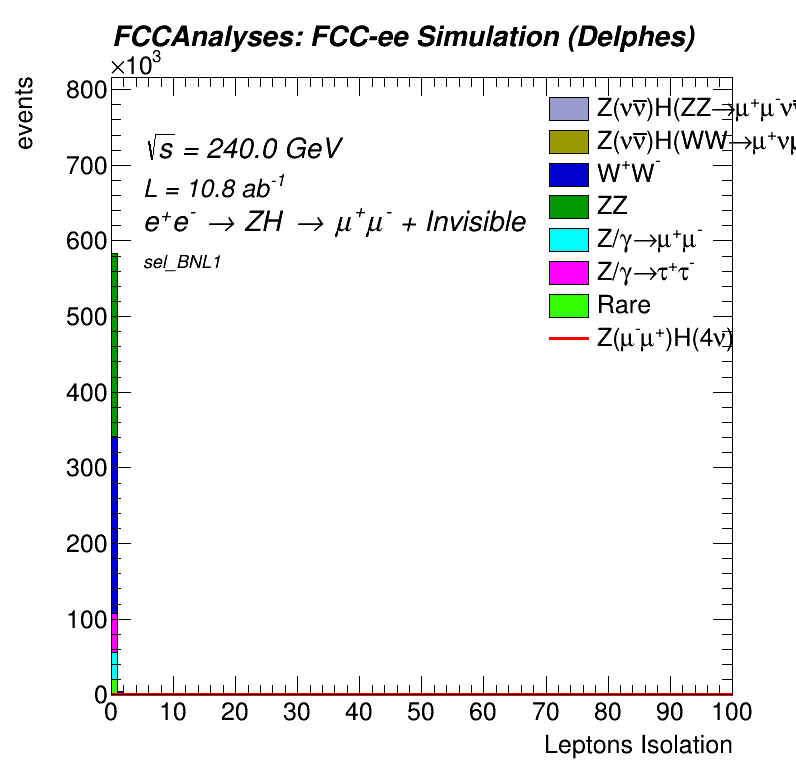

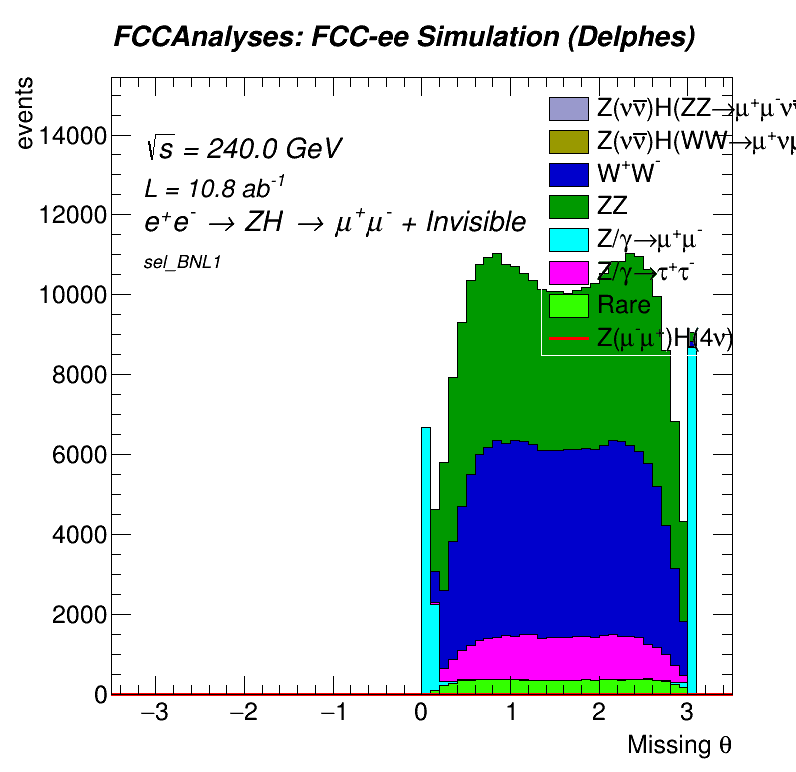

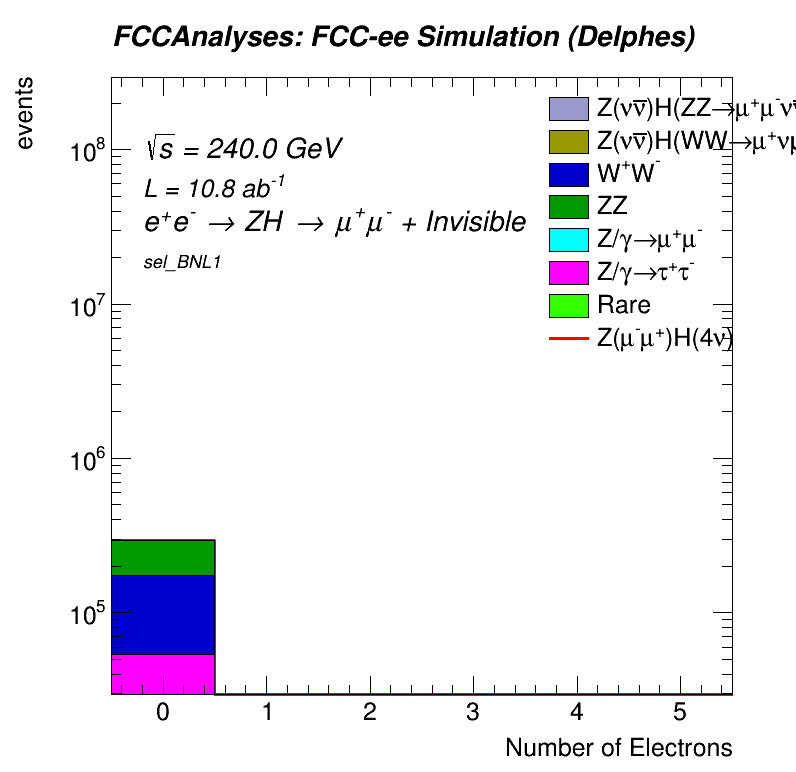

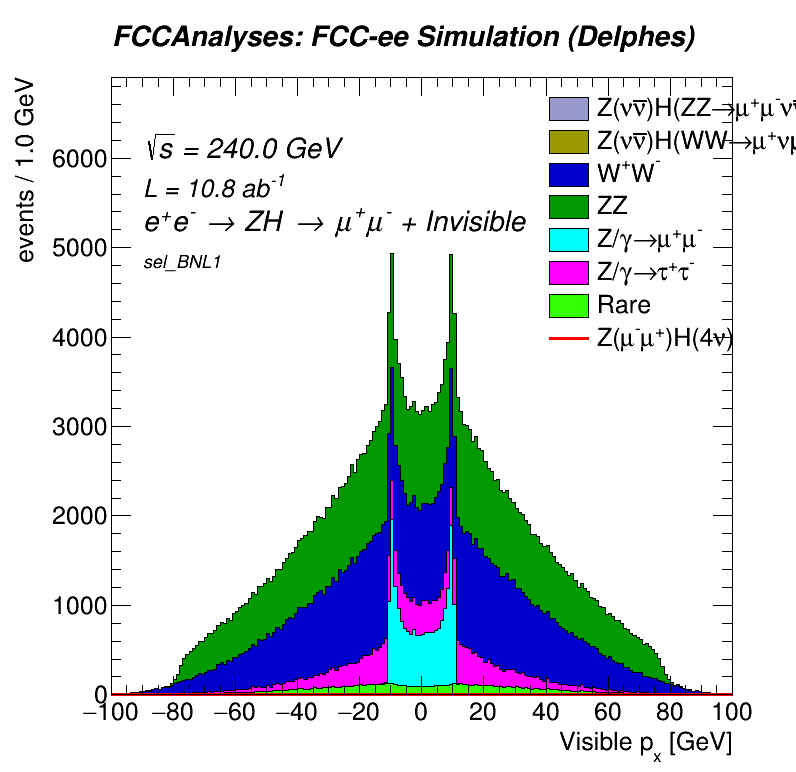

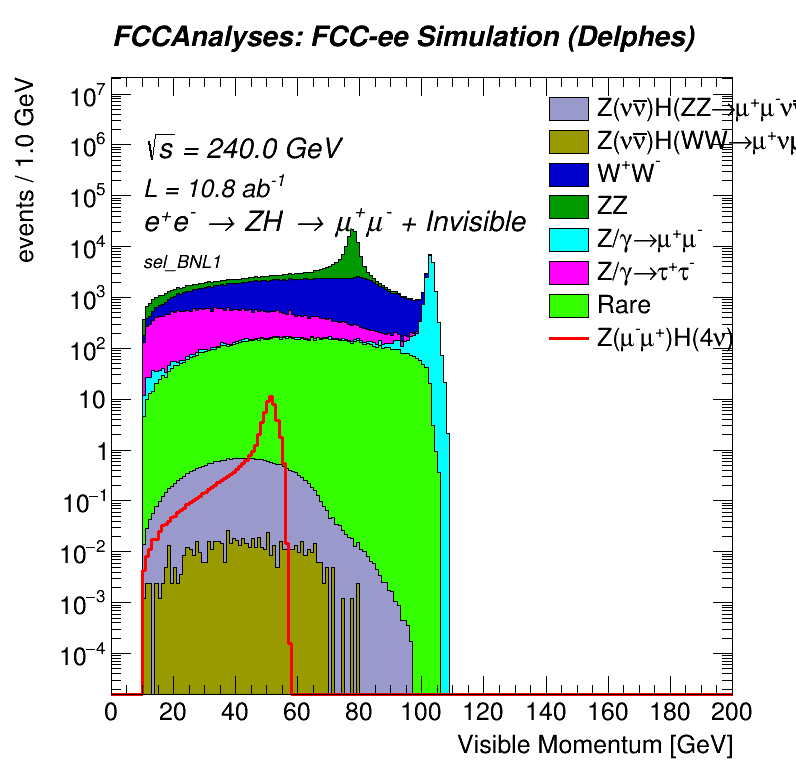

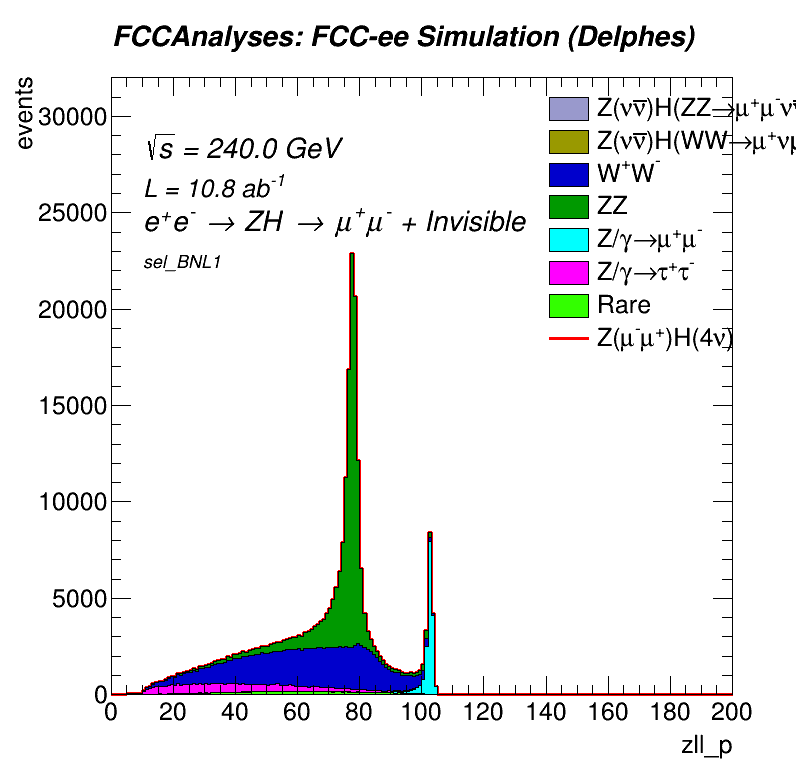

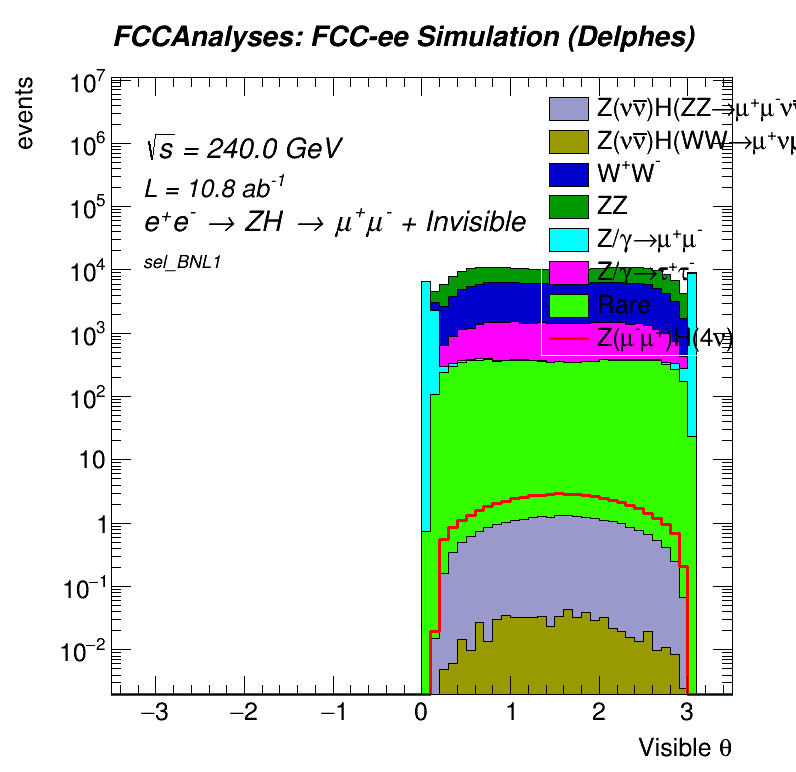

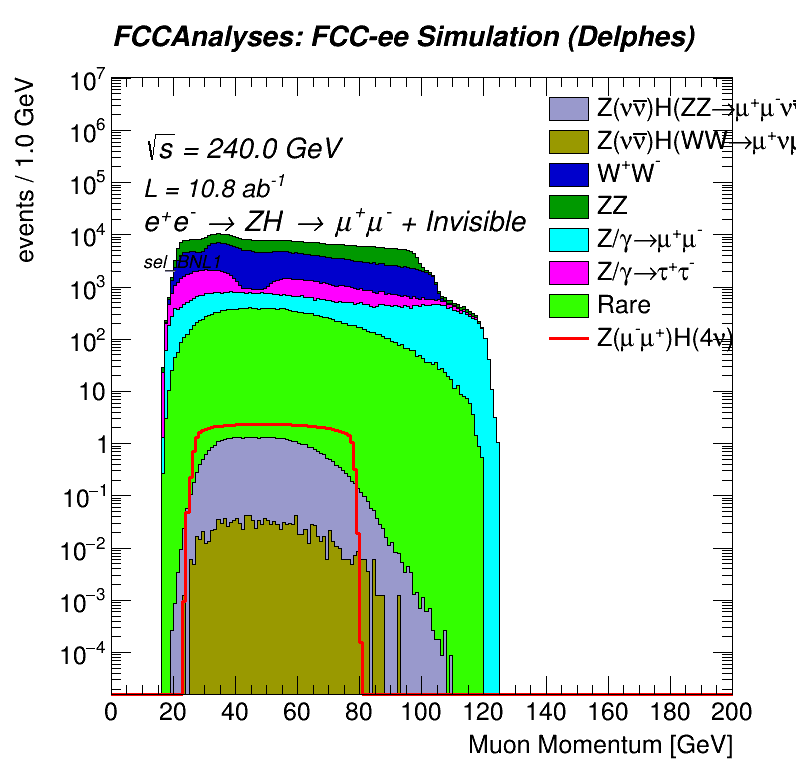

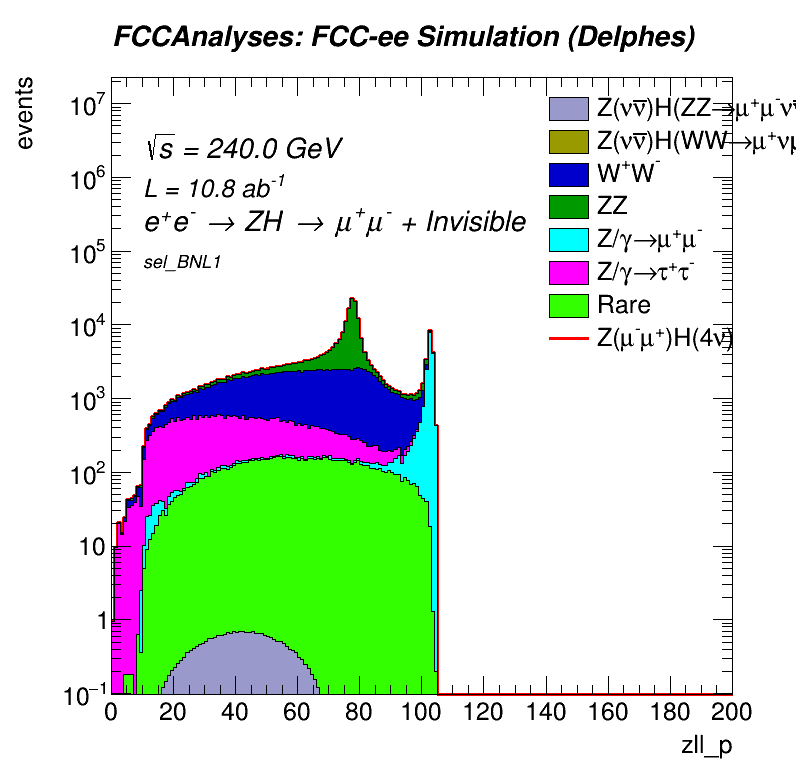

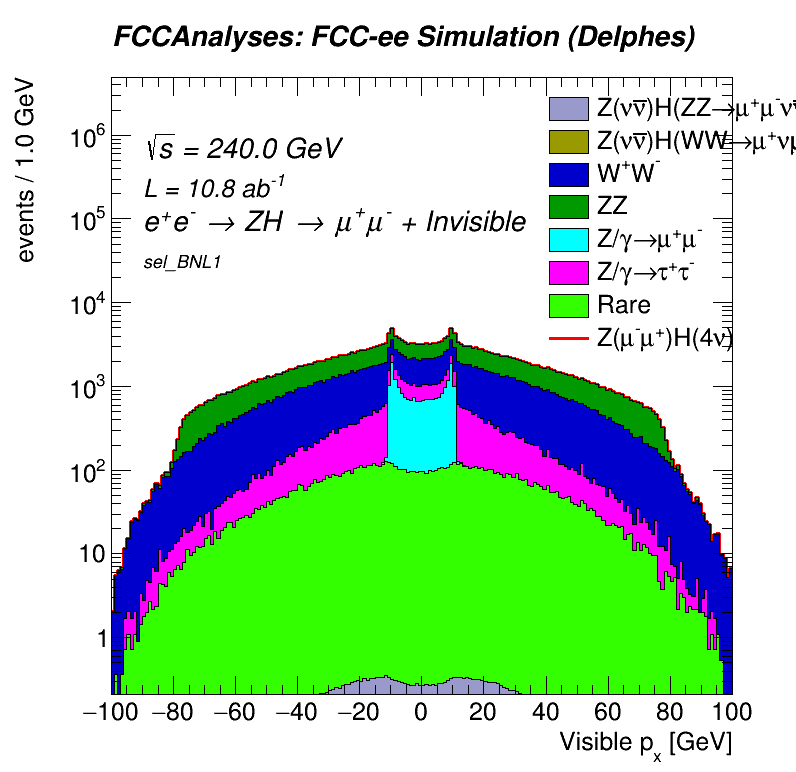

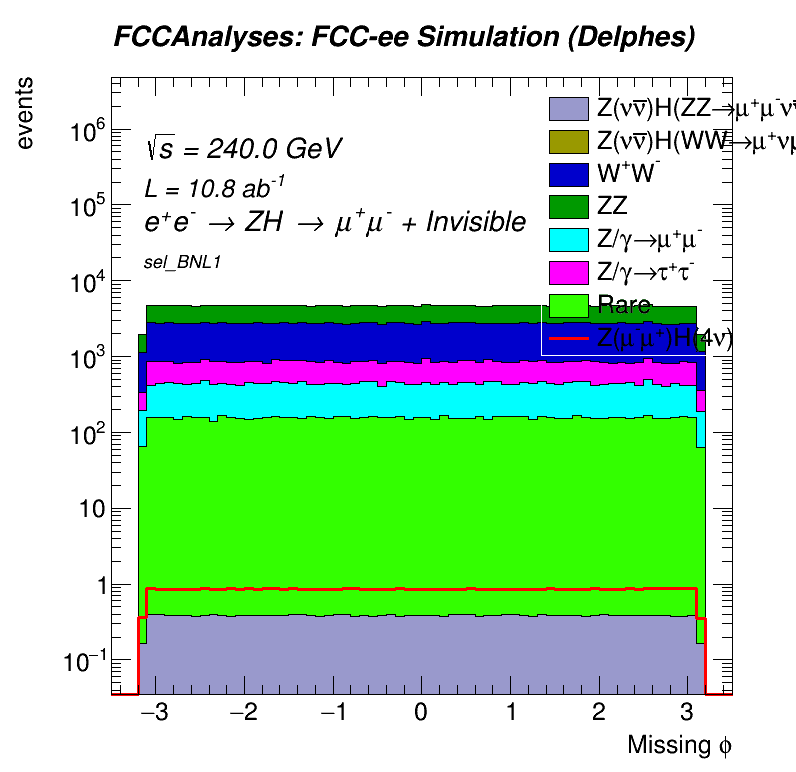

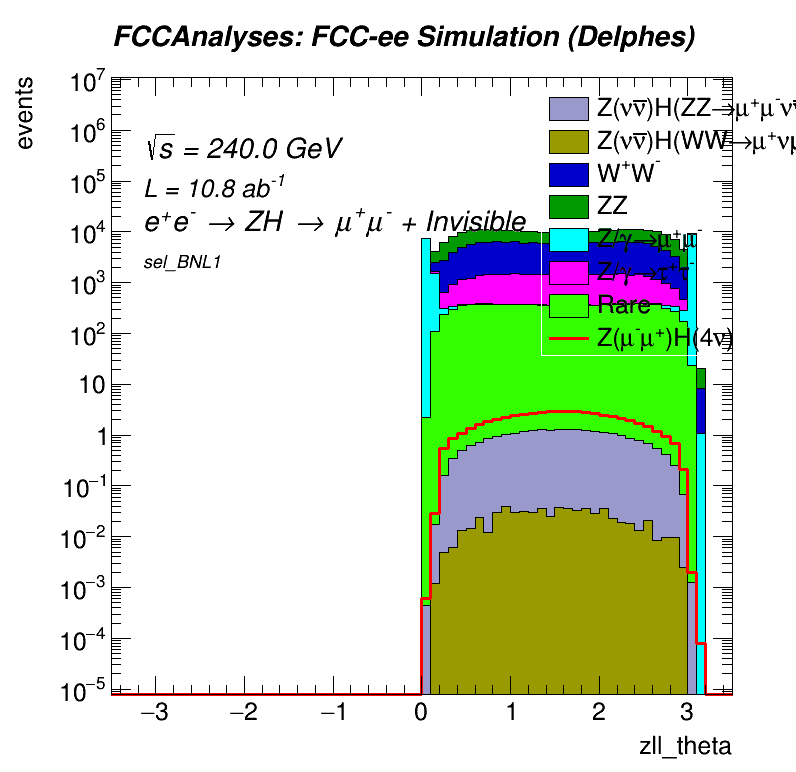

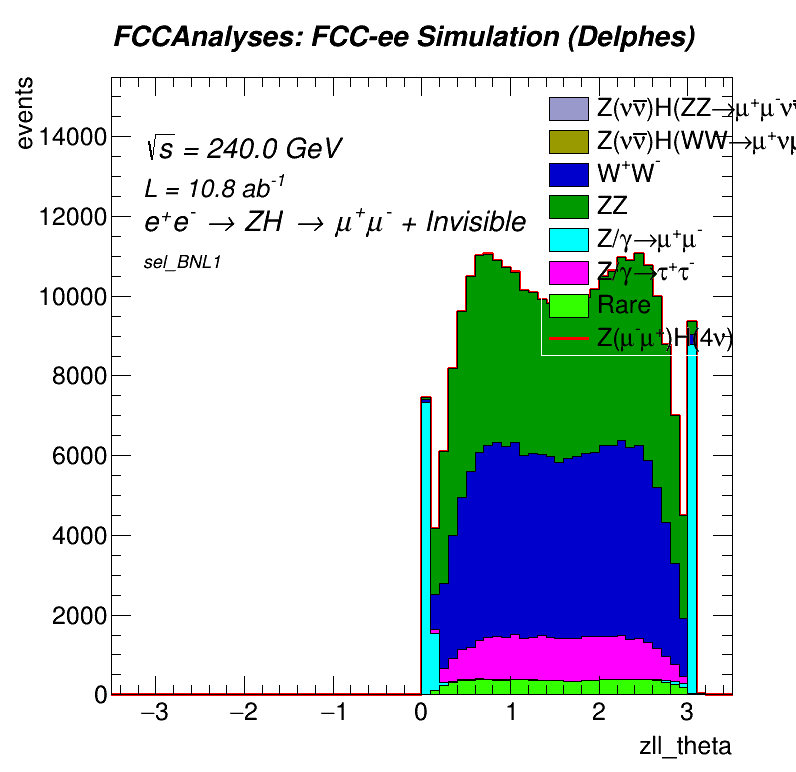

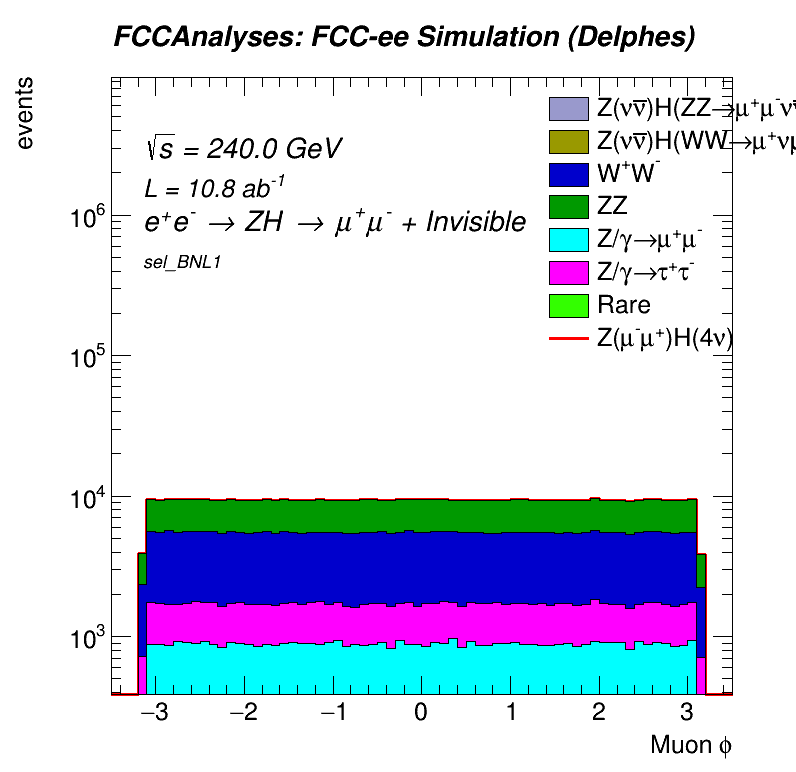

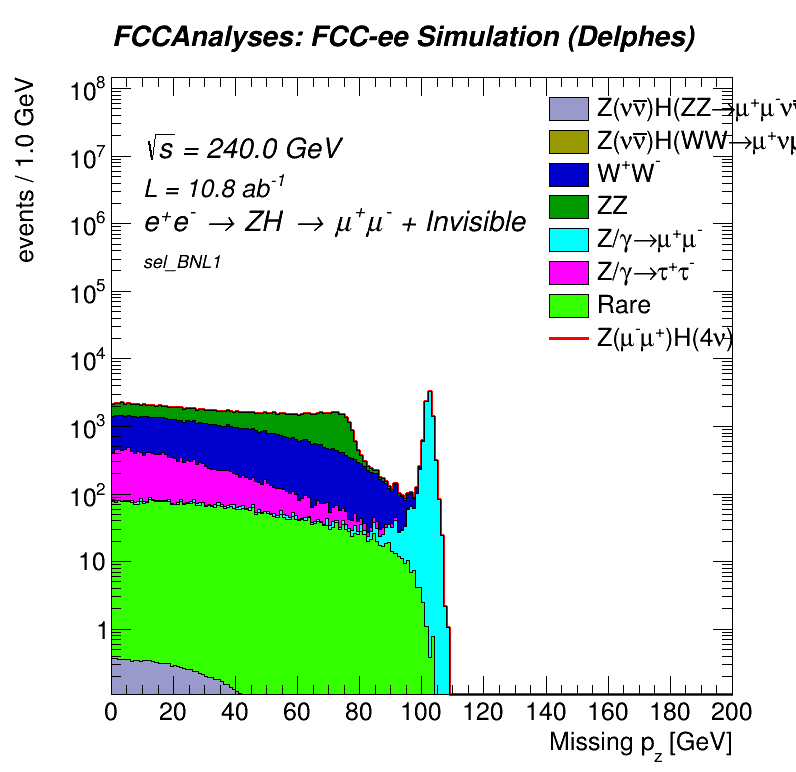

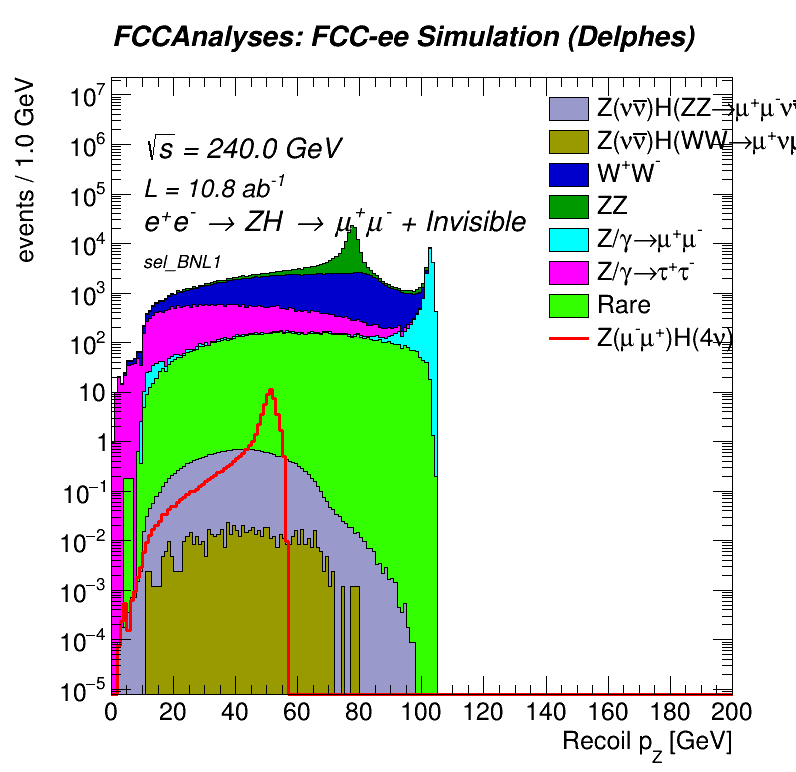

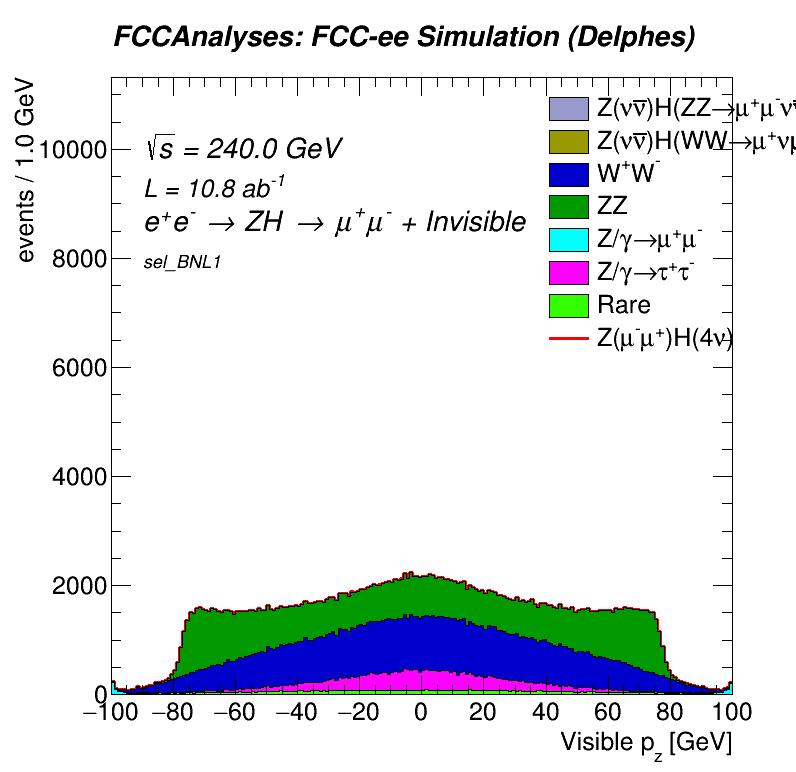

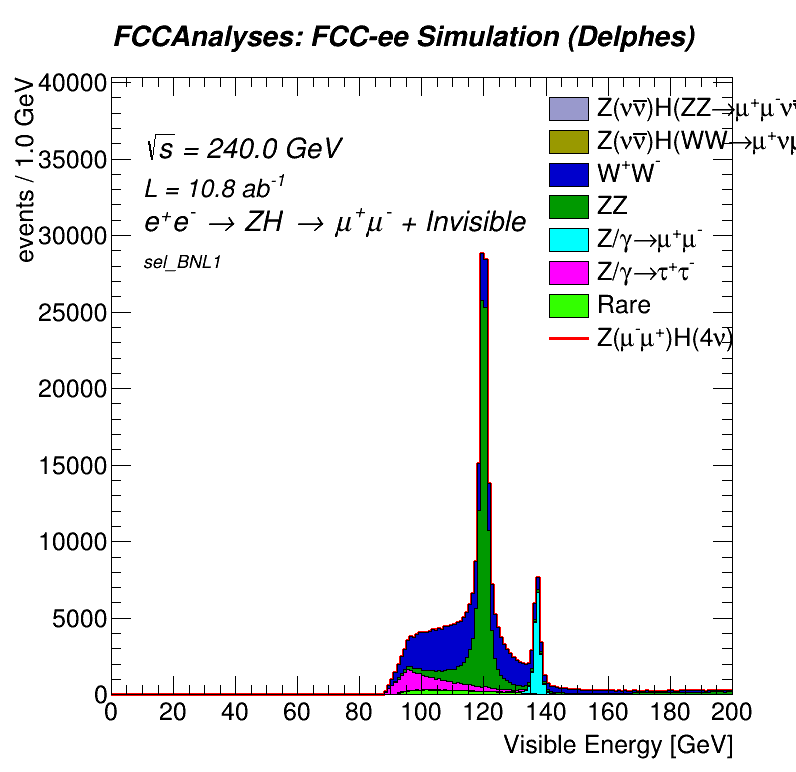

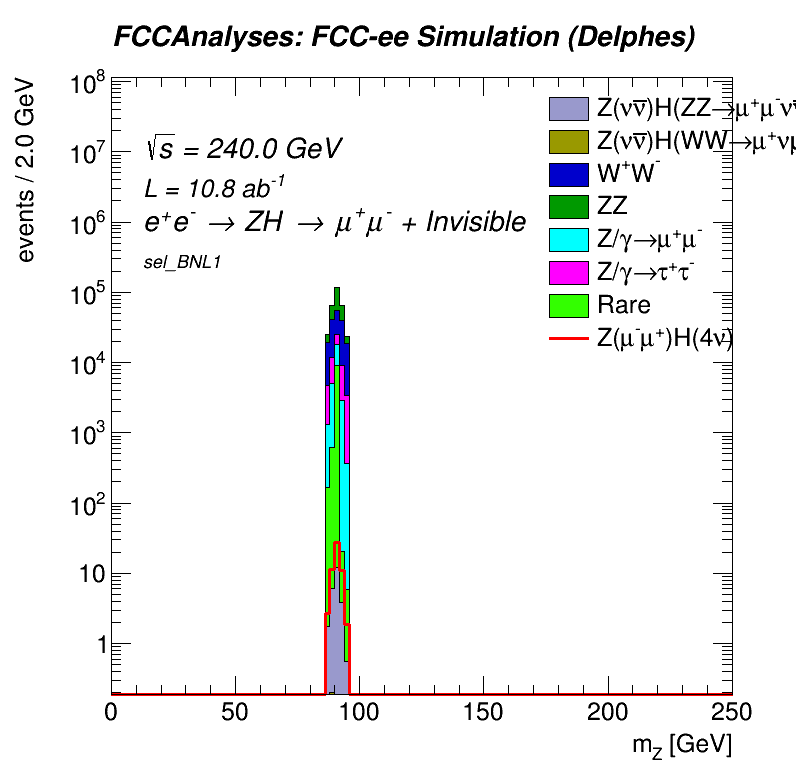

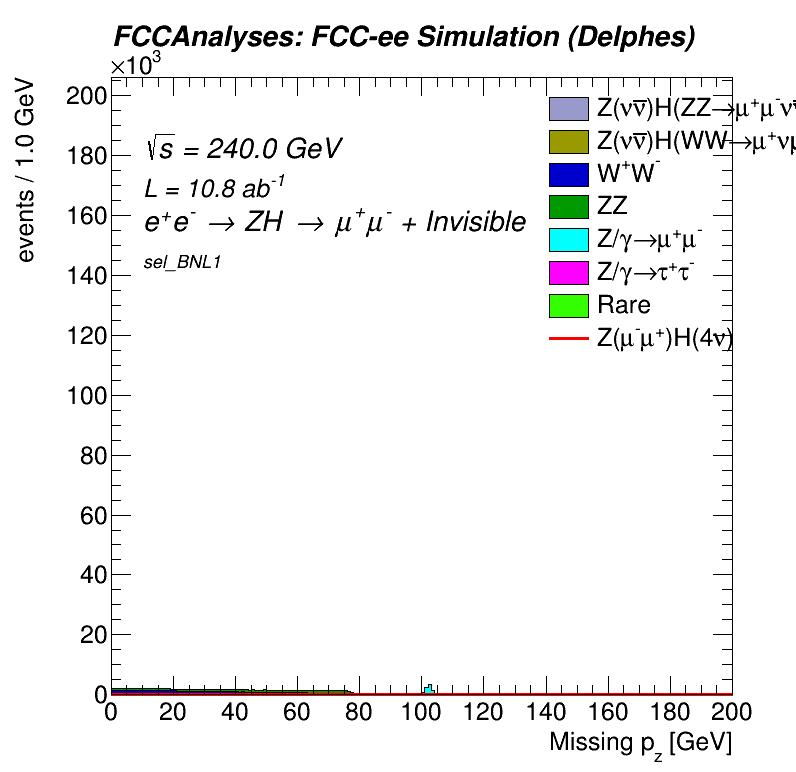

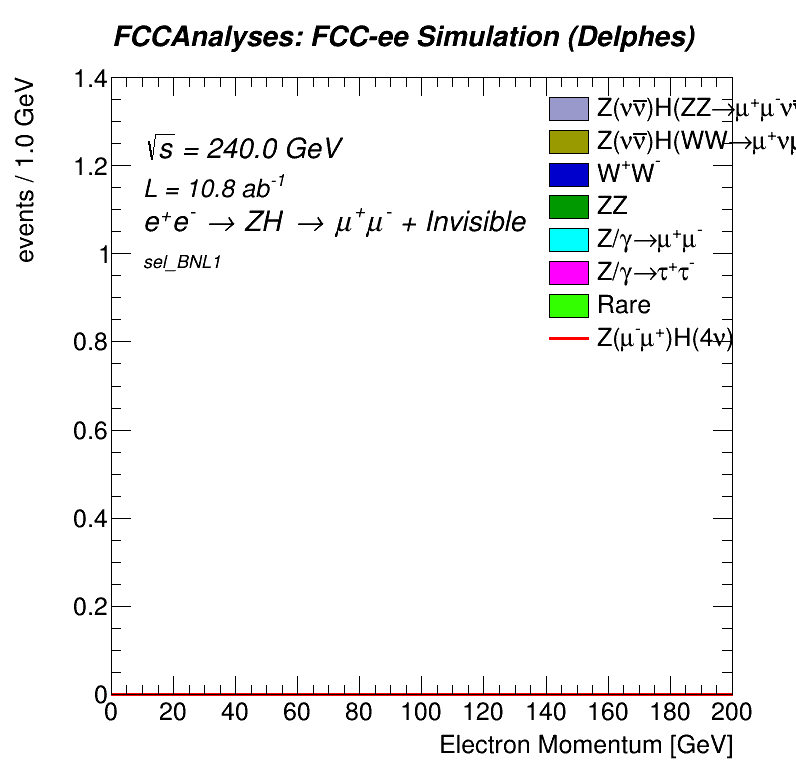

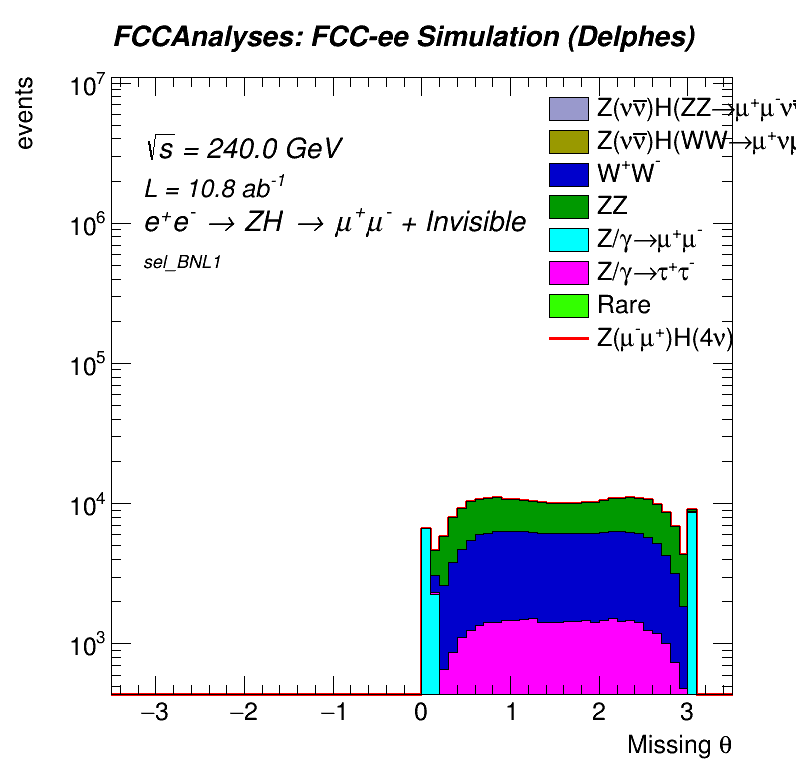

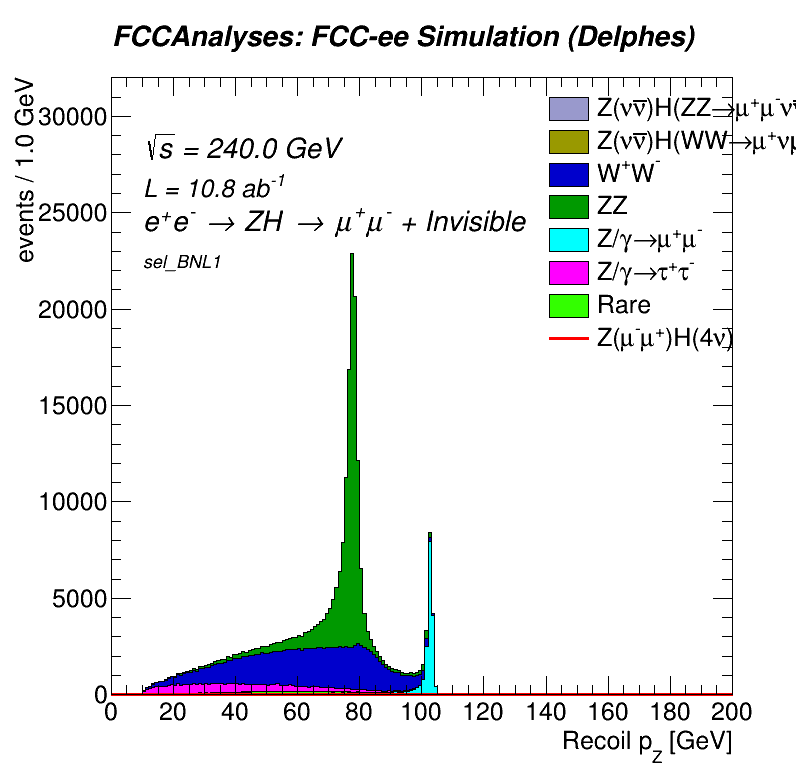

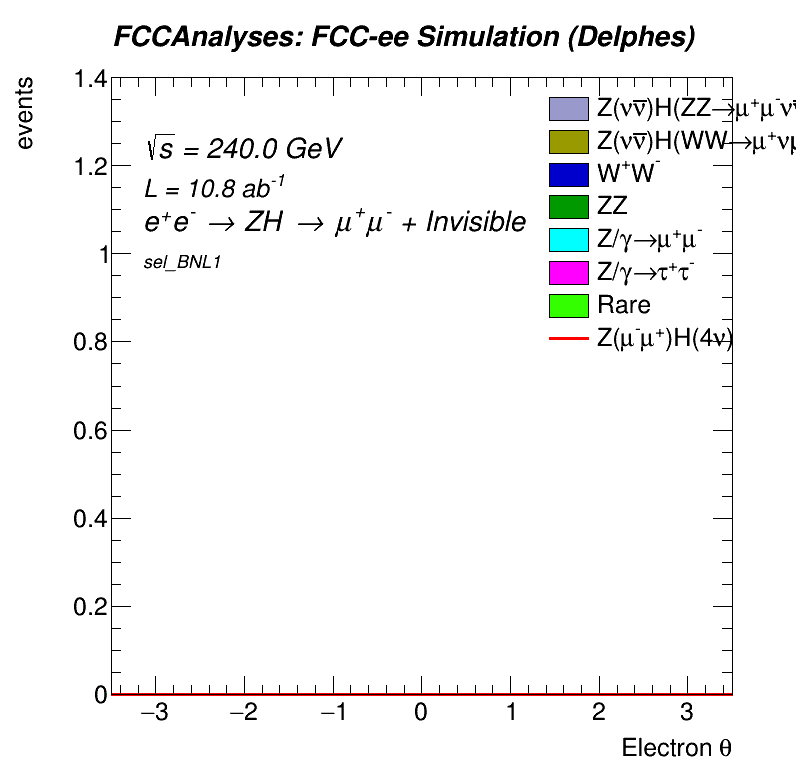

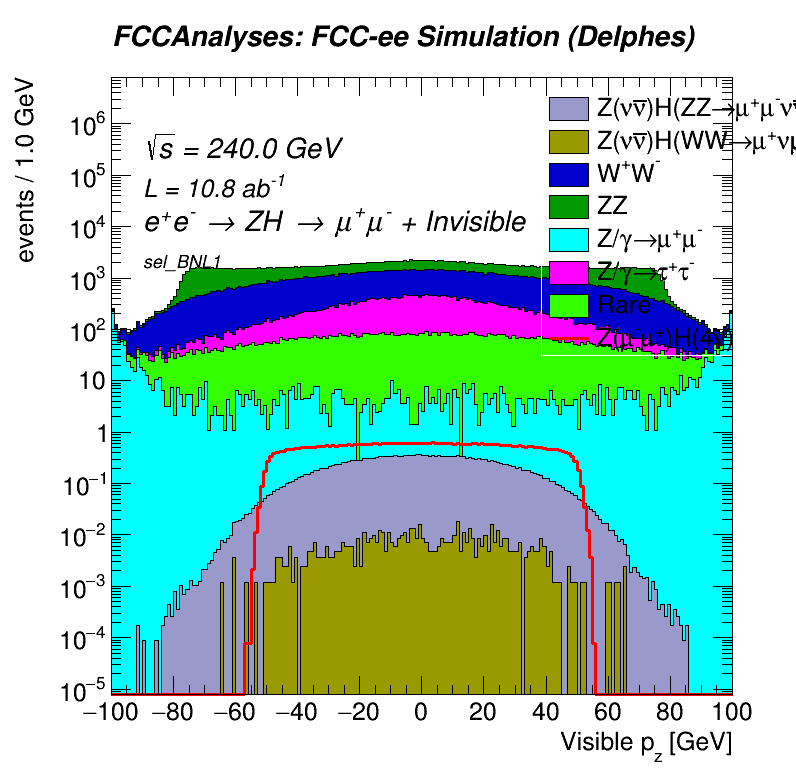

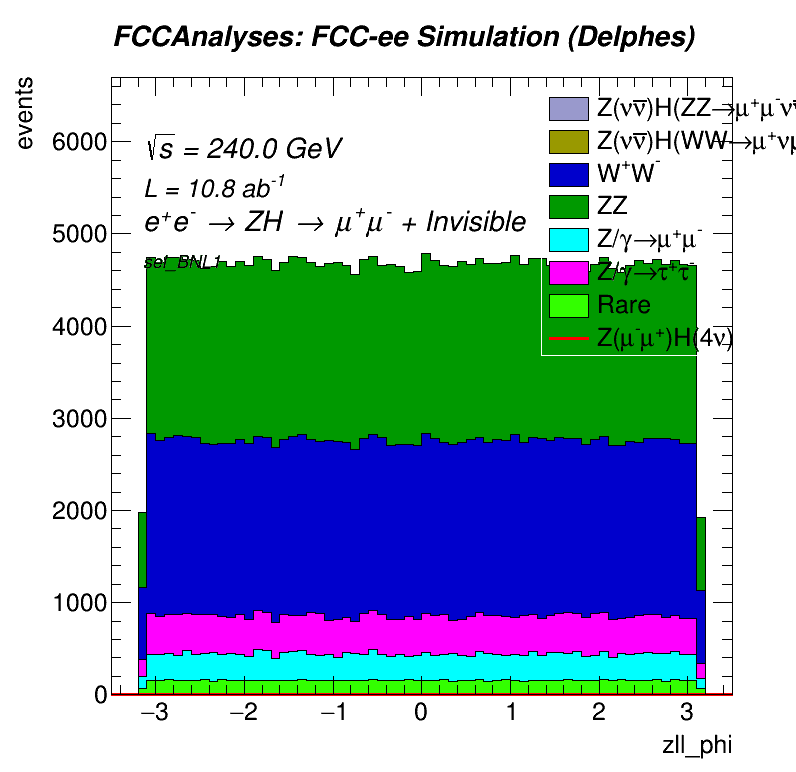

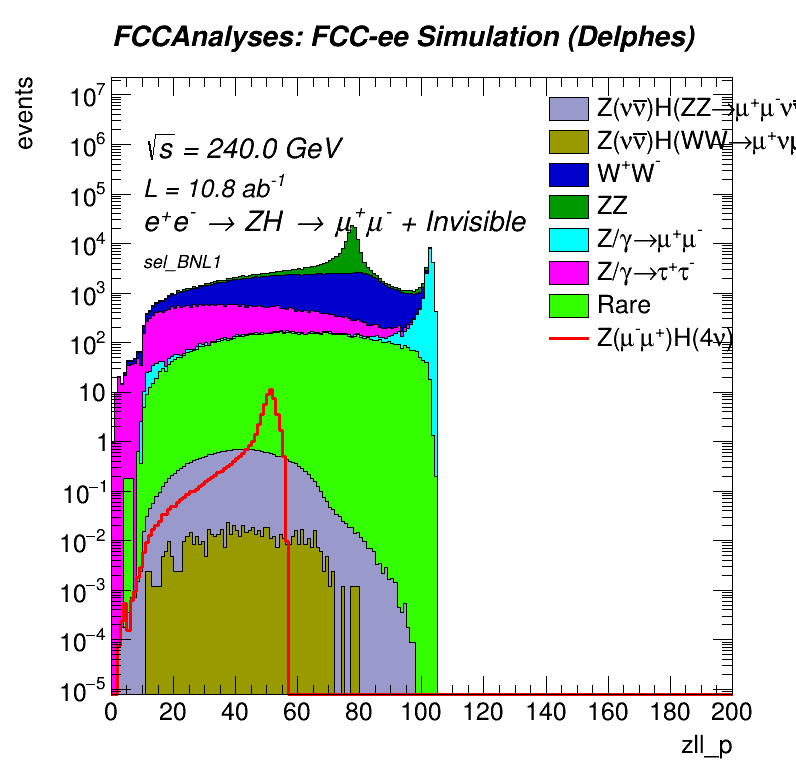

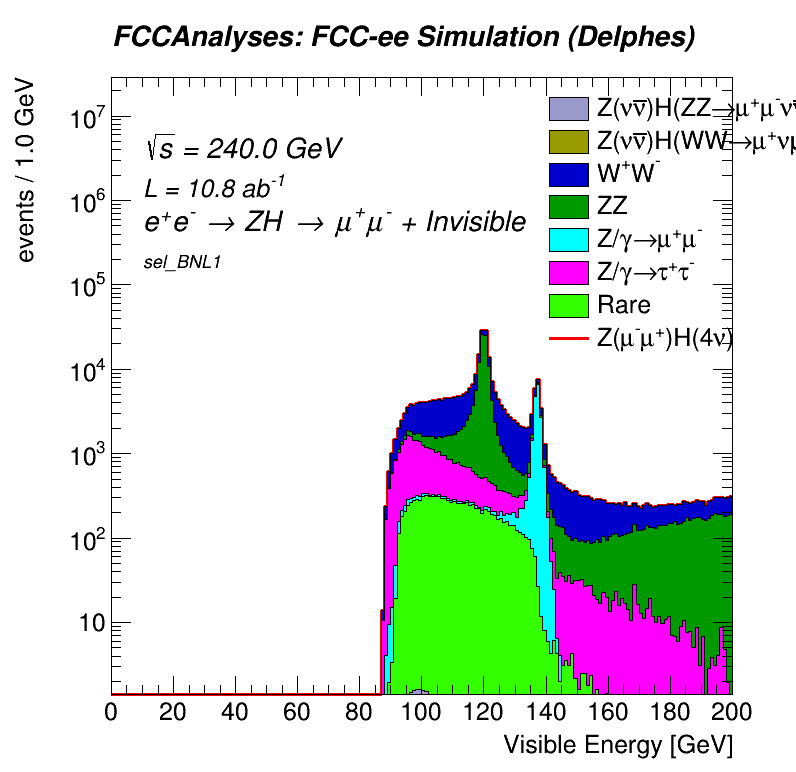

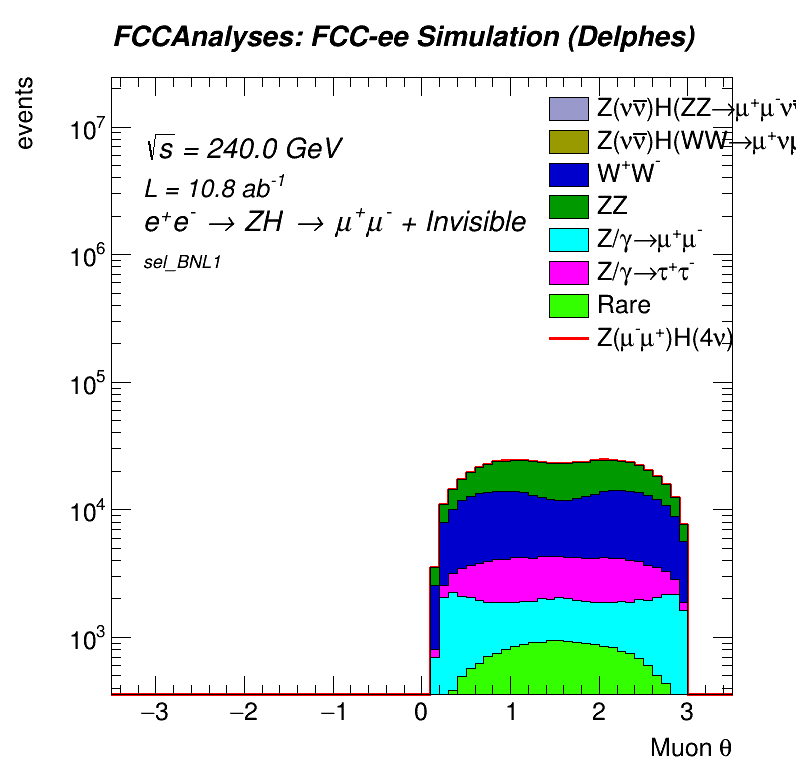

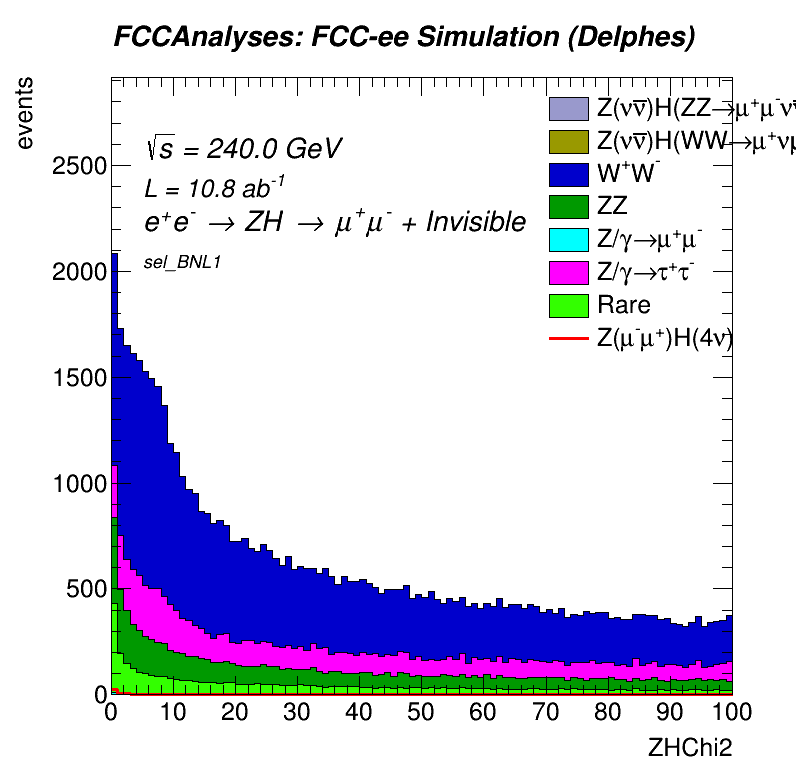

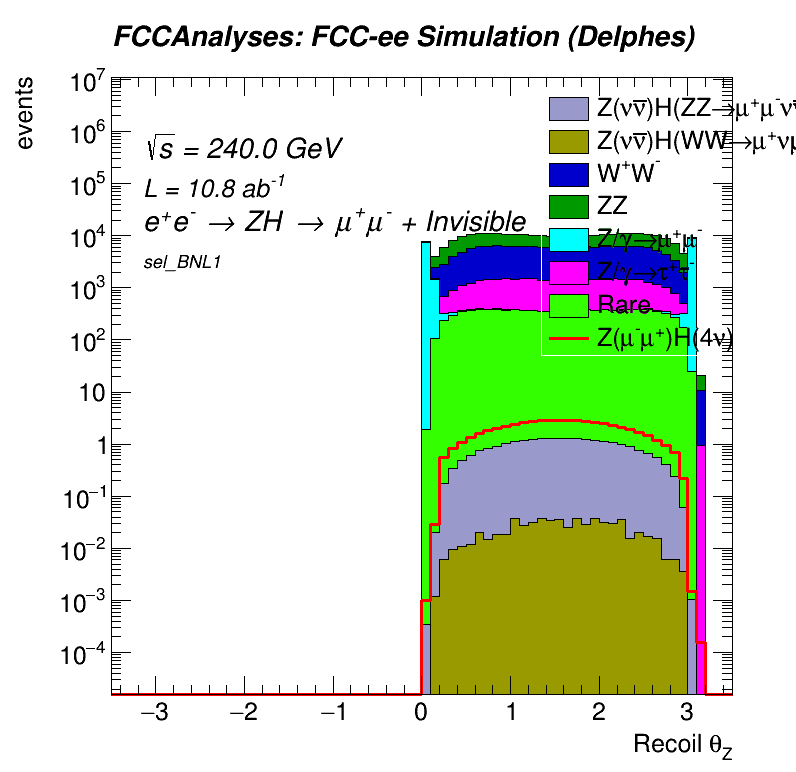

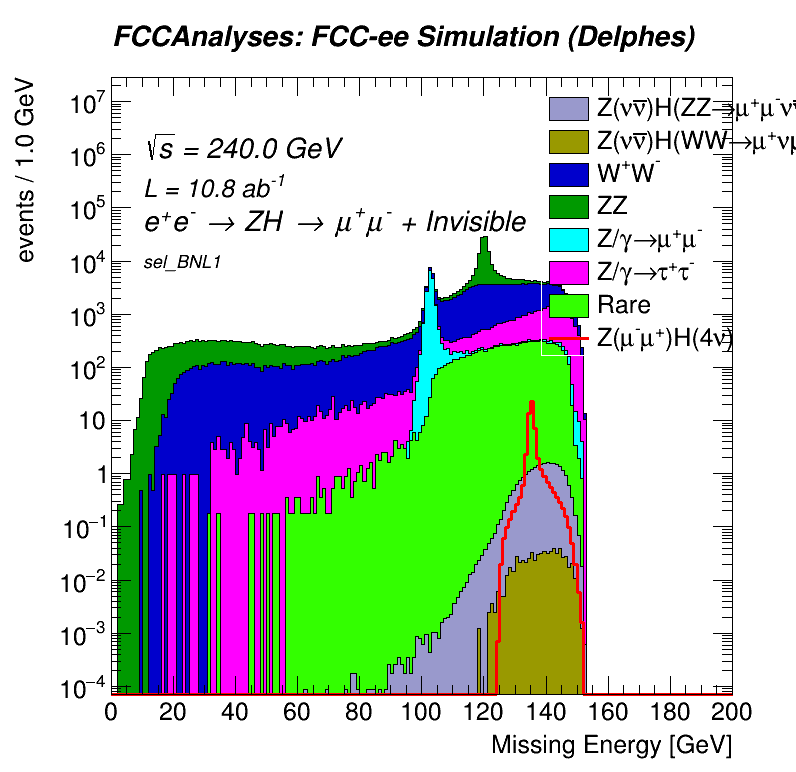

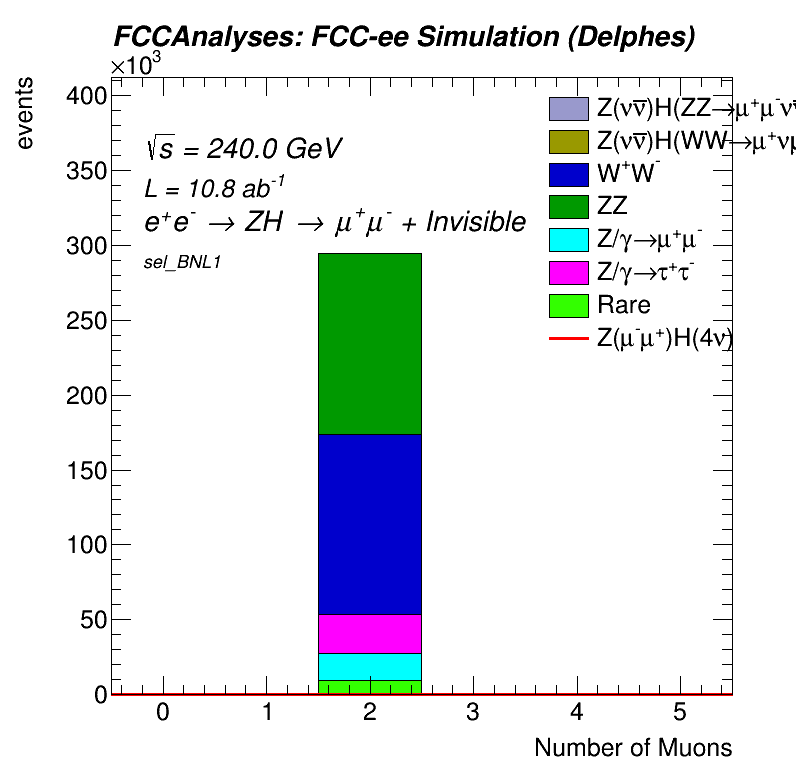

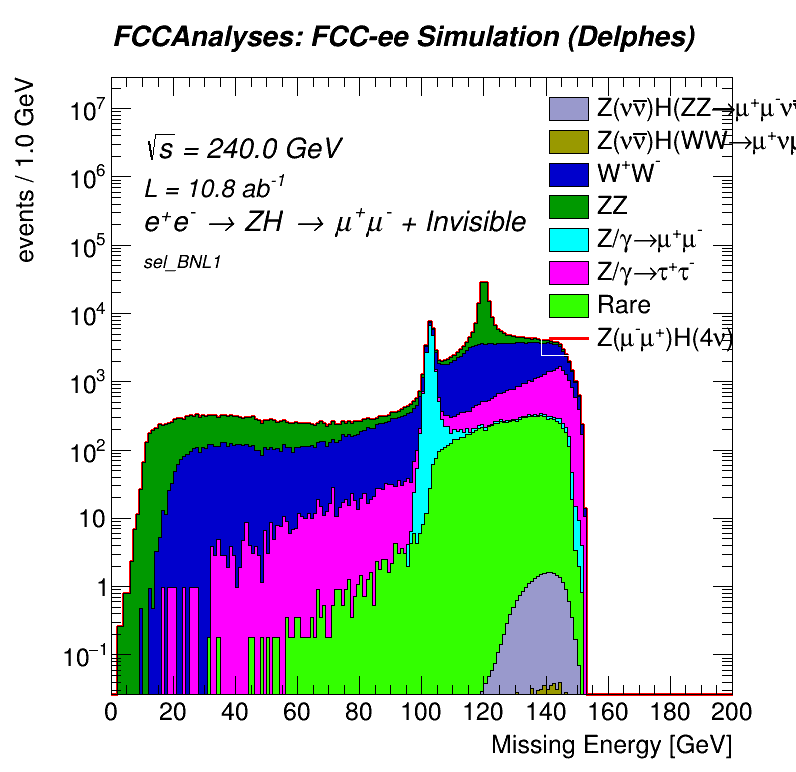

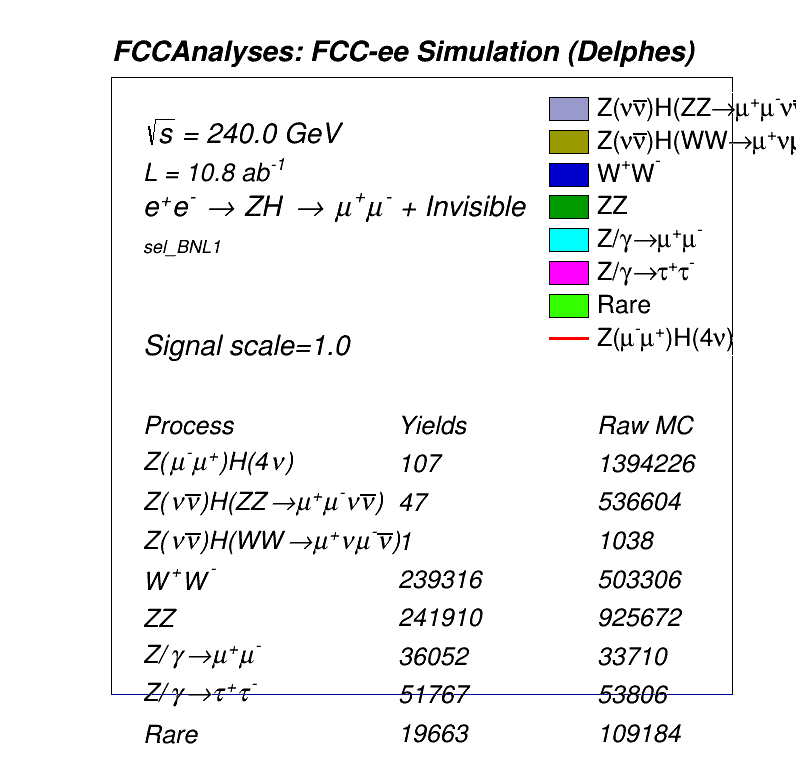

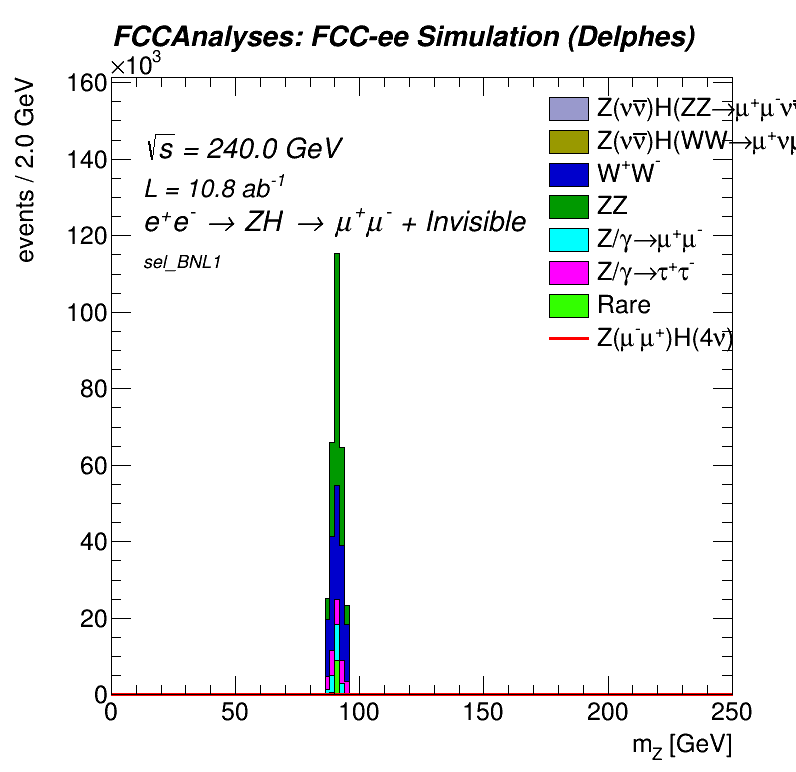

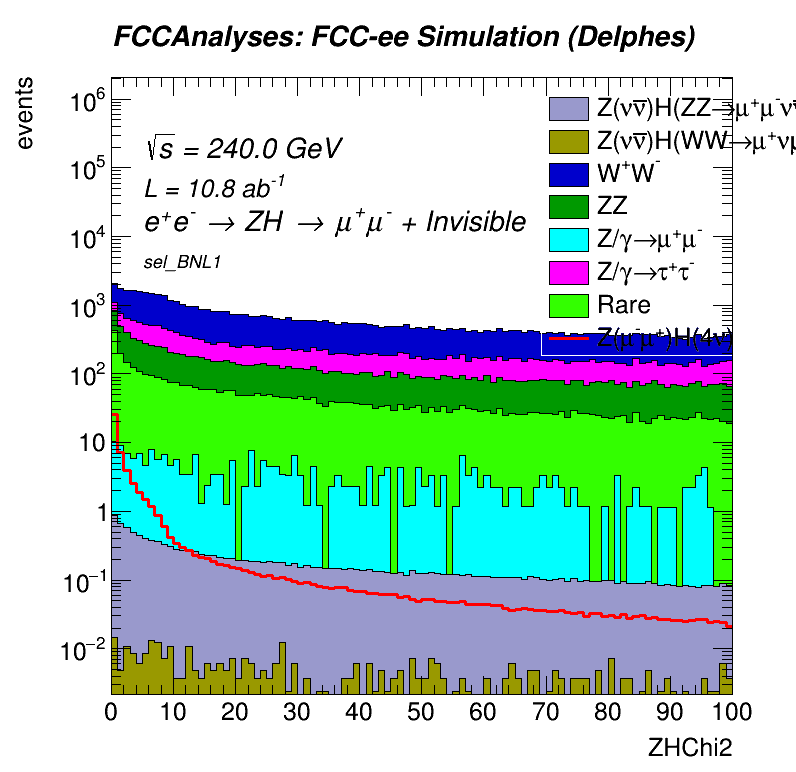

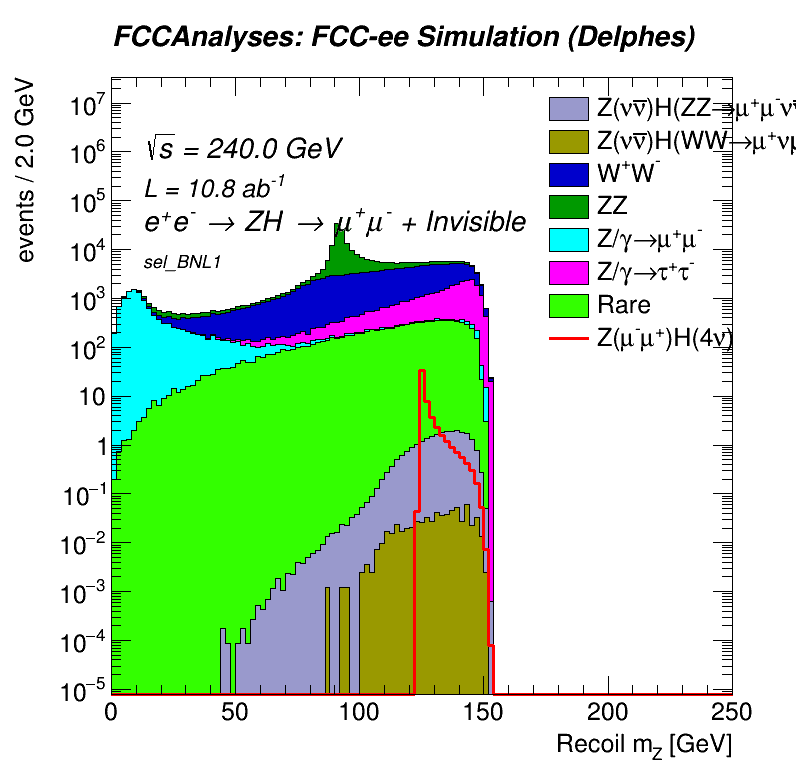

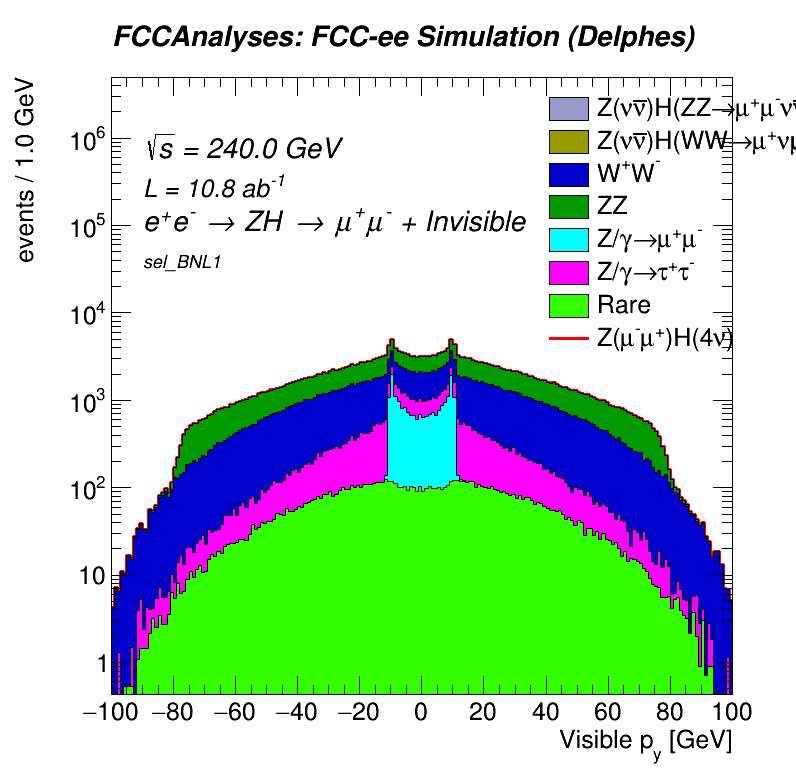

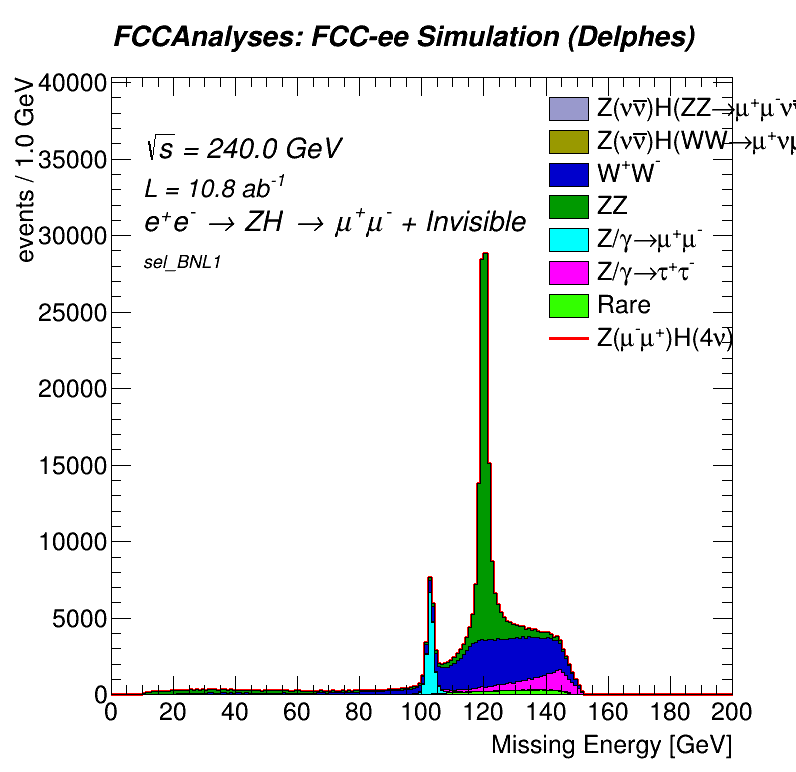

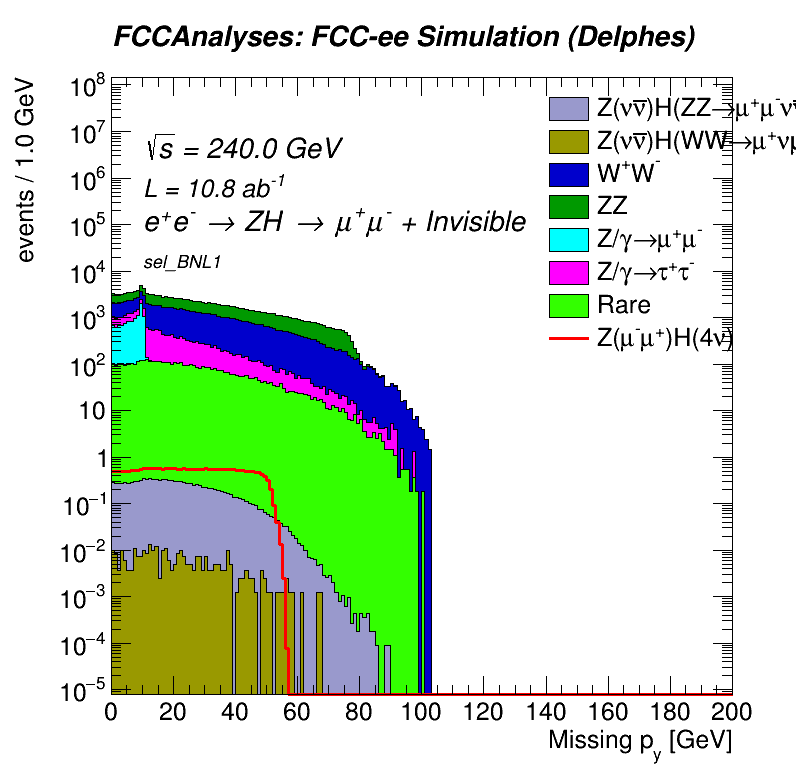

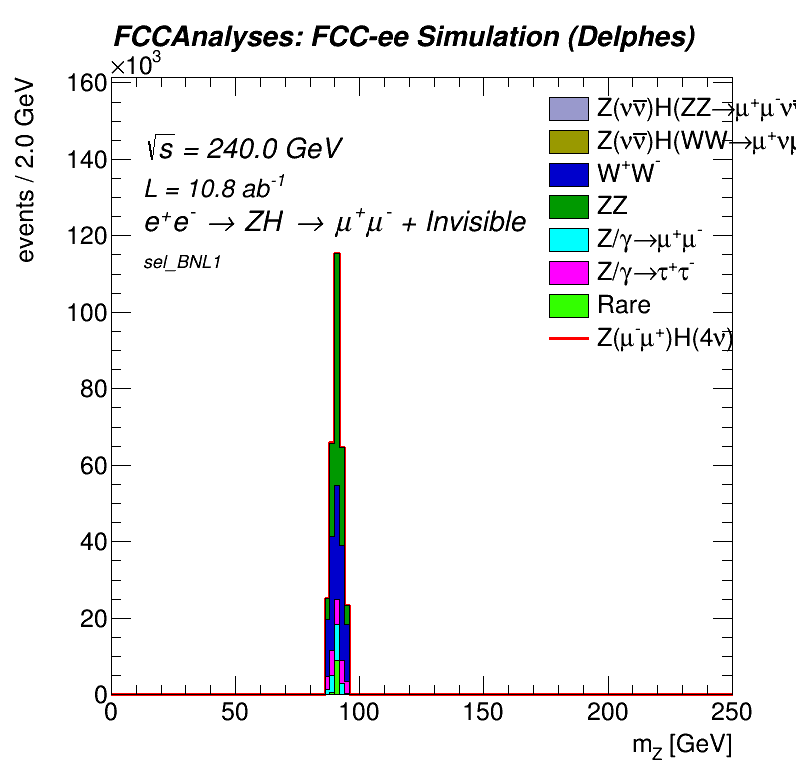

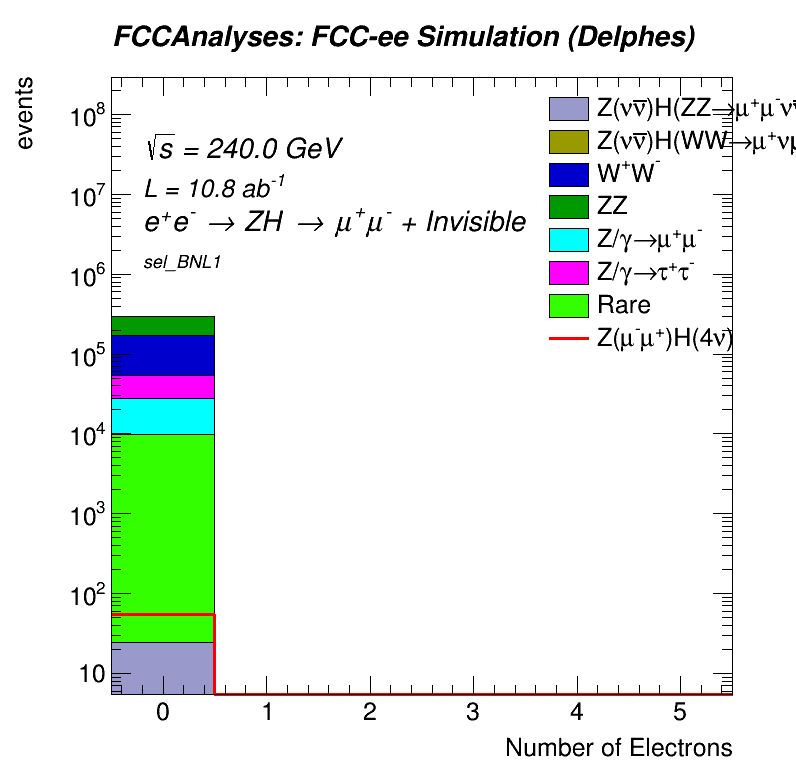

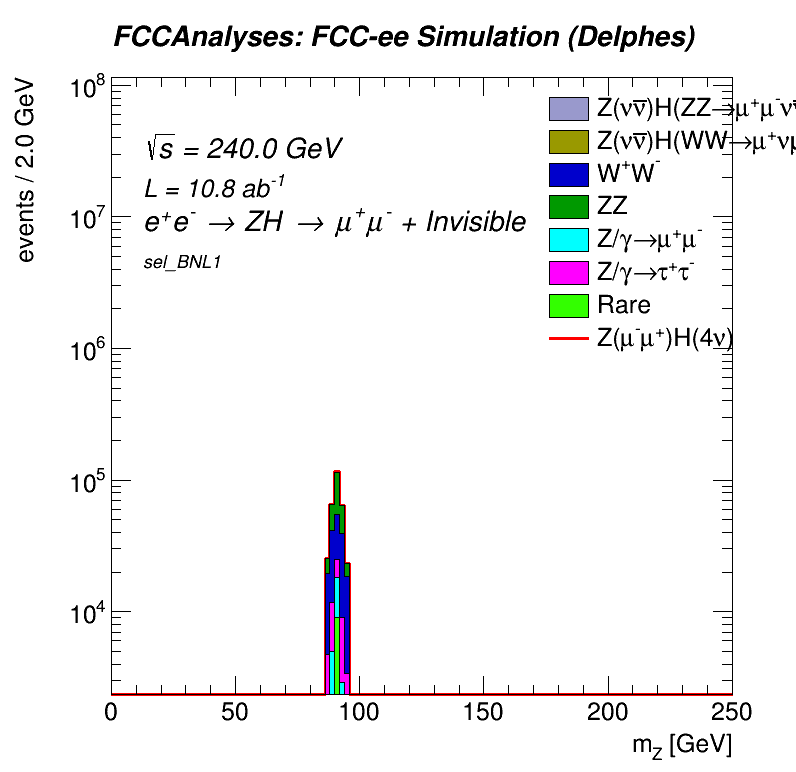

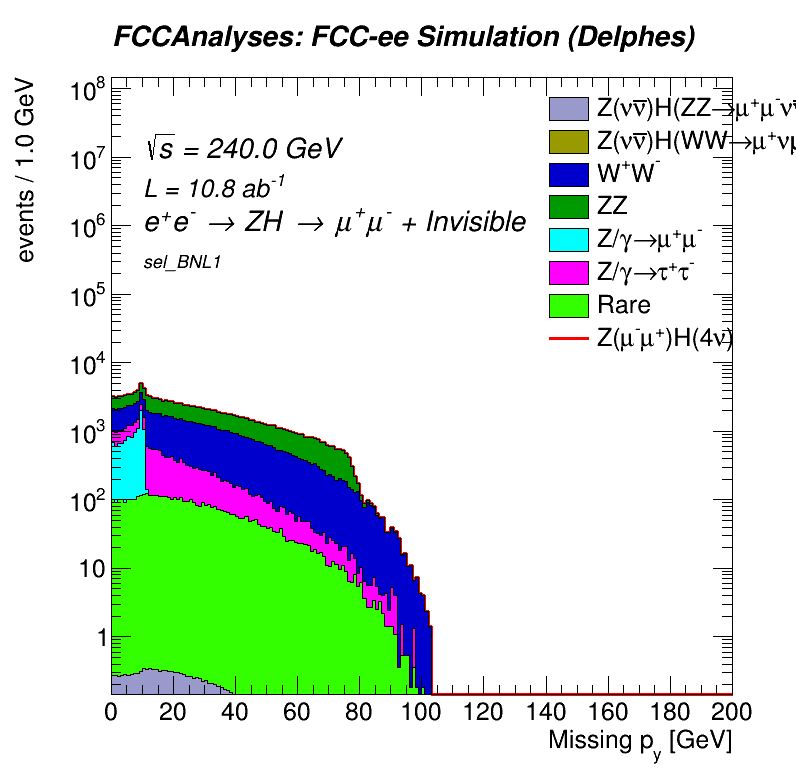

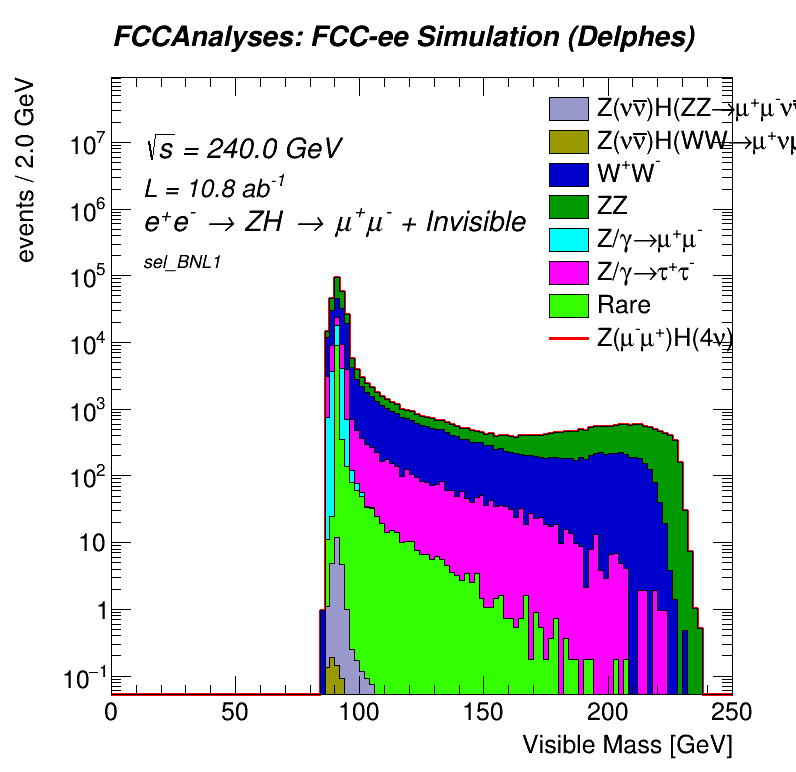

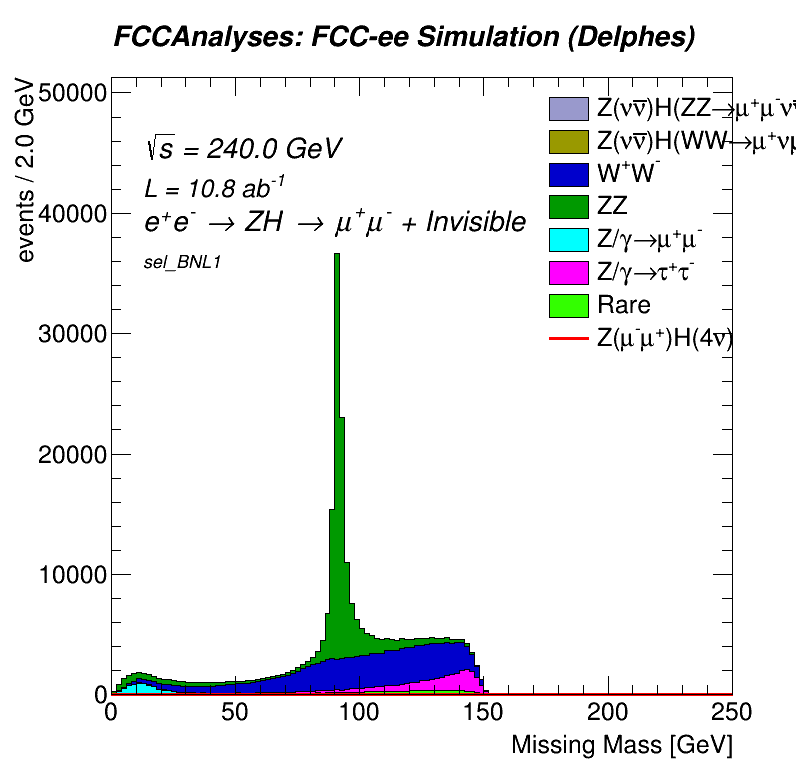

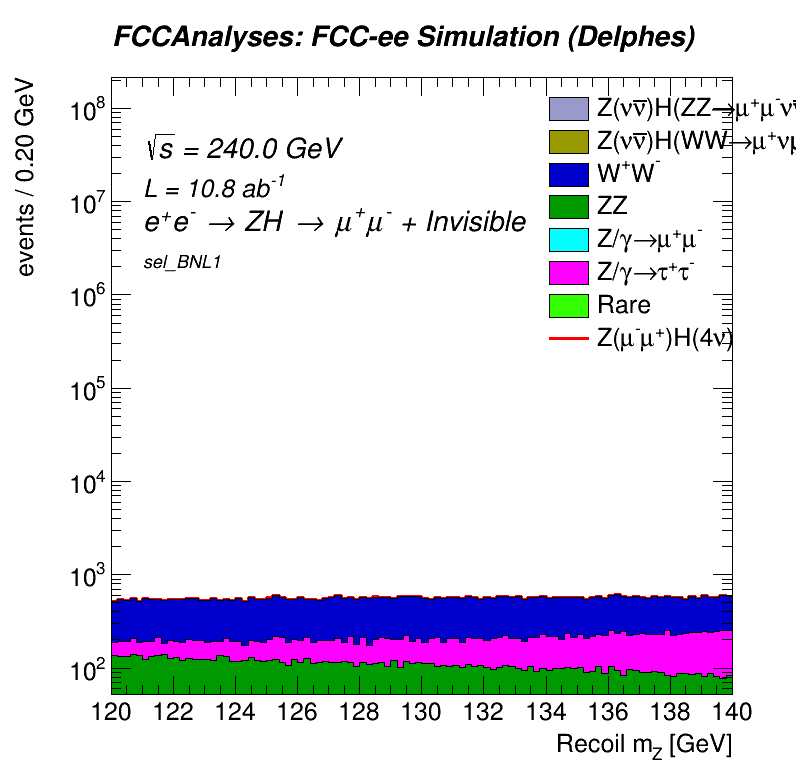

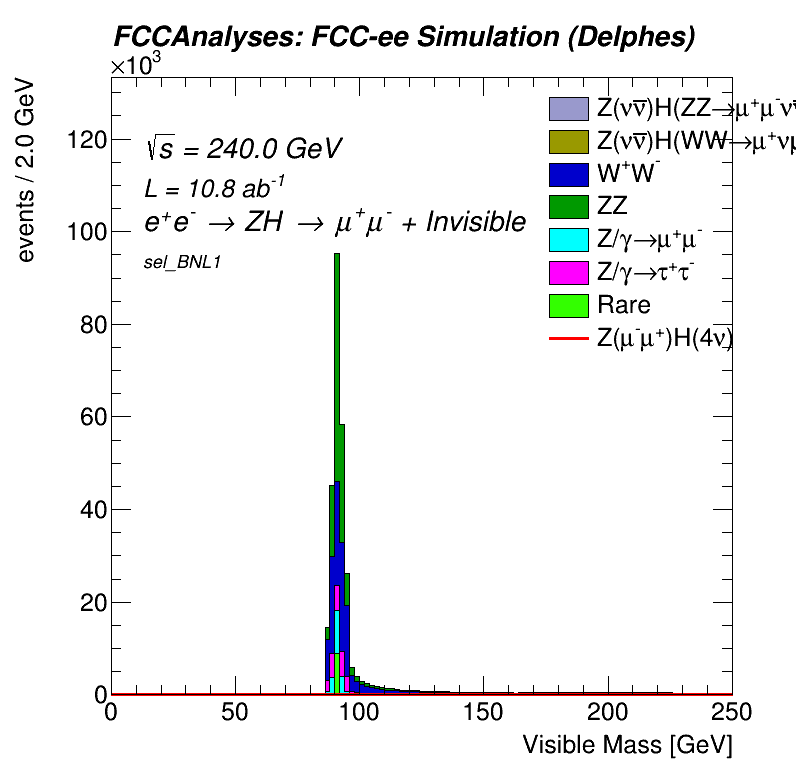

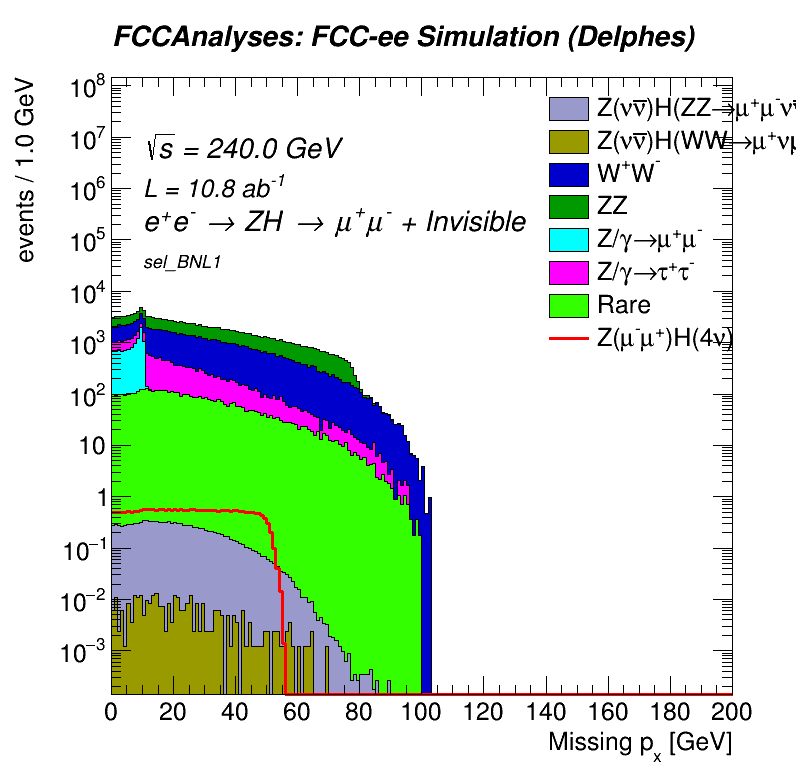

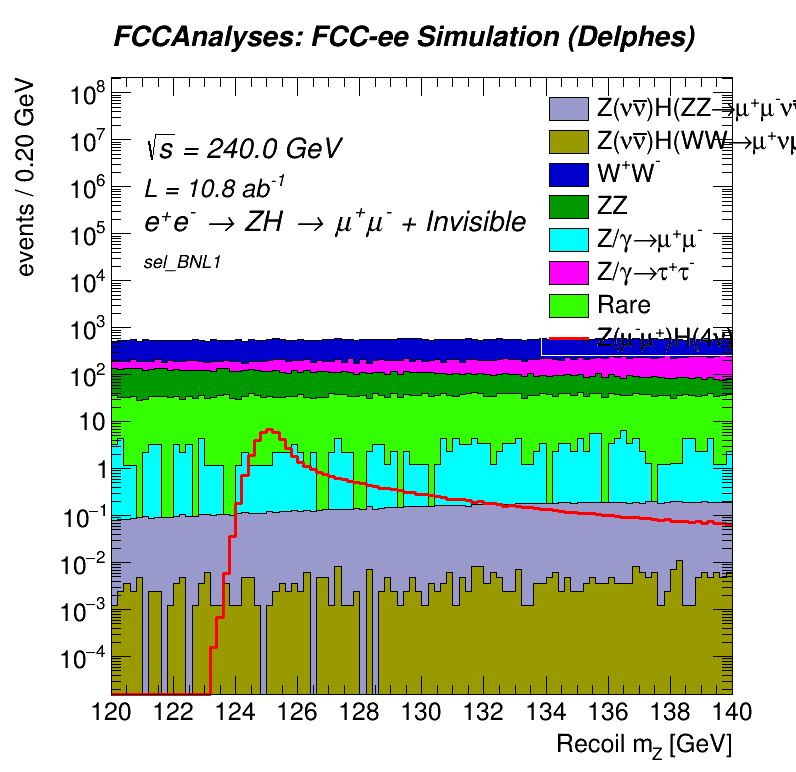

"sel_BNL1":"muons_no==2 && electrons_no==0 && Z_m[0] > 87 && Z_m[0] < 95 && missing_pt[0] > 10 && muons_p[0] > 10 && muons_p[1] > 10",
"sel_BNL2":"muons_no==2 && electrons_no==0 && Z_m[0] > 87 && Z_m[0] < 95 && missing_pt[0] > 11 && muons_p[0] > 10 && muons_p[1] > 10",
"sel_BNL3":"muons_no==2 && electrons_no==0 && Z_m[0] > 87 && Z_m[0] < 95 && missing_pt[0] > 15 && muons_p[0] > 10 && muons_p[1] > 10",
"sel_BNL4":"muons_no==2 && electrons_no==0 && Z_m[0] > 87 && Z_m[0] < 95 && missing_pt[0] > 20 && muons_p[0] > 10 && muons_p[1] > 10", seel0 is NoSel
Please enjoy!
If you spot any issue, please contact me Ang LI
